| size | 36" | 36" |
| Chuck Size | 36" | 914.4 mm |
| Horz/Vert | Vert | Vert |
| Power | 25 hp | 18.6 kW |
| Swing | 39" | 990.6 mm |
| Under Wheel | 12" | 304.8 mm |
| Grinding Wheel Width | 5" | 127 mm |
| Grinding Wheel Dia. | 18" | 457.2 mm |

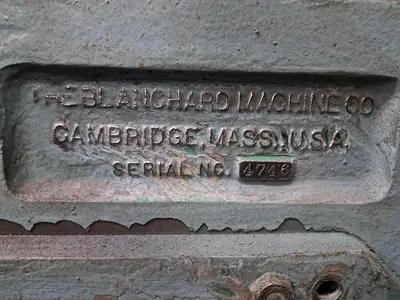

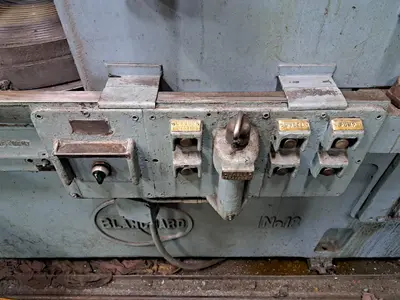

Blanchard No.18–36 Rotary Surface Grinder
Magnetic Chuck, Diameter 36"
Magnetic Chuck, Work Load Capacity 3000 LBS
Height Under Grinding Wheel, Maximum 12"
Grinding Wheel Diameter, Maximum 18"
Grinding Wheel Speed 720 RPM
(6) Chuck Speeds, Range 6 to 33 RPM
Power Down Feed, Range .005 to .080 IPM
Electrical System 220-440/3/60
Overall Dimensions, W x D 112" x 65"
Weight Approximately 12900 LBS
