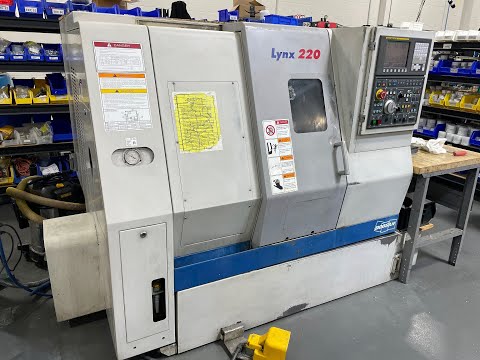

Doosan Model Lynx 220A CNC Turning Center (2007)
Have one to sell?
ConditionUsed
1 available
8" chuck, Tool Presetter, Fanuc 0iTC CNC
Doosan Model Lynx 220A 2-Axis CNC Turning Center
Max Swing Over Bed: 20.08"
Max Swing Over Saddle: 11.42"
Max Turning Diameter: 12.6"
Max Turning Length: 12.68"
Spindle Speeds: 6,000 Max RPM
Spindle Drive: 20 HP
Spindle Nose: A2-5
Hole Thru Spindle: 2.09"
Hole Thru Draw Tube: 1.8" Bar Capacity
Turret Capacity: 12 Stations
Turret Travels (X,Z): 6.9" x 12.99"
Rapid Traverse Rate (X/Z): 1,181 IPM
Electrics: 208/3/60
Fanuc 0iTC CNC Control
Tool Eye
Spindle Orientation
8" 3 Jaw Chuck
