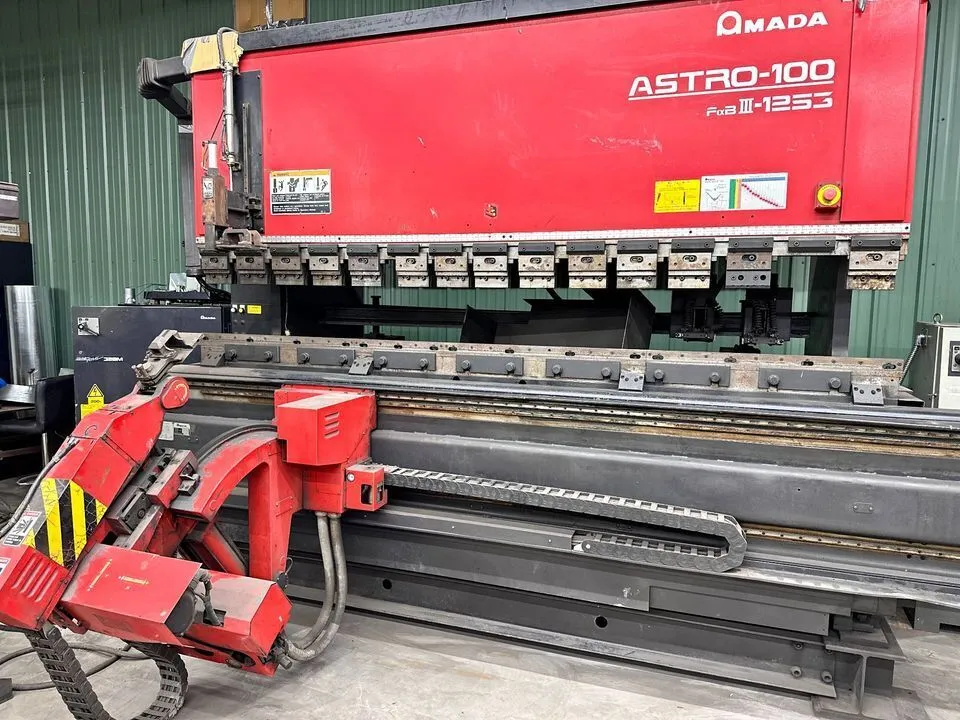

Amada Astro-100MH FBDIII 1253 CNC Press Brake With Robotic Loader (2000)

Amada FBD-1253MH Astro-100MH 125 Ton Hydraulic Press Brake

Max. Tonnage: 138 U.S. TONS
Bed Length: 122"
Max. Stroke Length: 5.9"
Open Height: 16.5"
Throat Depth: 15.7"
Distance Between Housings: 106"
Ram Repeatability: +/- 0.0004"
Angularity Accuracy: 0.25
Approach Speed: 165" PER MIN
Bending Speed: 2.4" TO 18" PER MIN (PROGRAMMABLE)
RETURN SPEED: 212" PER MIN
Hydraulic Oil Capacity: 22 GALLONS
MOVEMENT RANGE:
--L-AXIS: 19.6"
--R-AXIS: 5.9"
DRIVE MOTORS: AC SERVO (5) MOTORS
MAX. PART SIZE: 31.5" x 39.5"
MAX. MATERIAL WEIGHT: 33 LBS
FLANGE LENGTH REPEATABILITY: 0.004"
GRIPPER SPECS: 2 STANDARD
POWER REQUIREMENTS: 200 VAC, 30 KVS, 100A 3 PHASE
AIR REQUIREMENTS: 30 FT./MIN @ 71 PSI, DIA. LINE
MACHINE WEIGHT (X2): 27,496 LBS / 1,367 LBS
