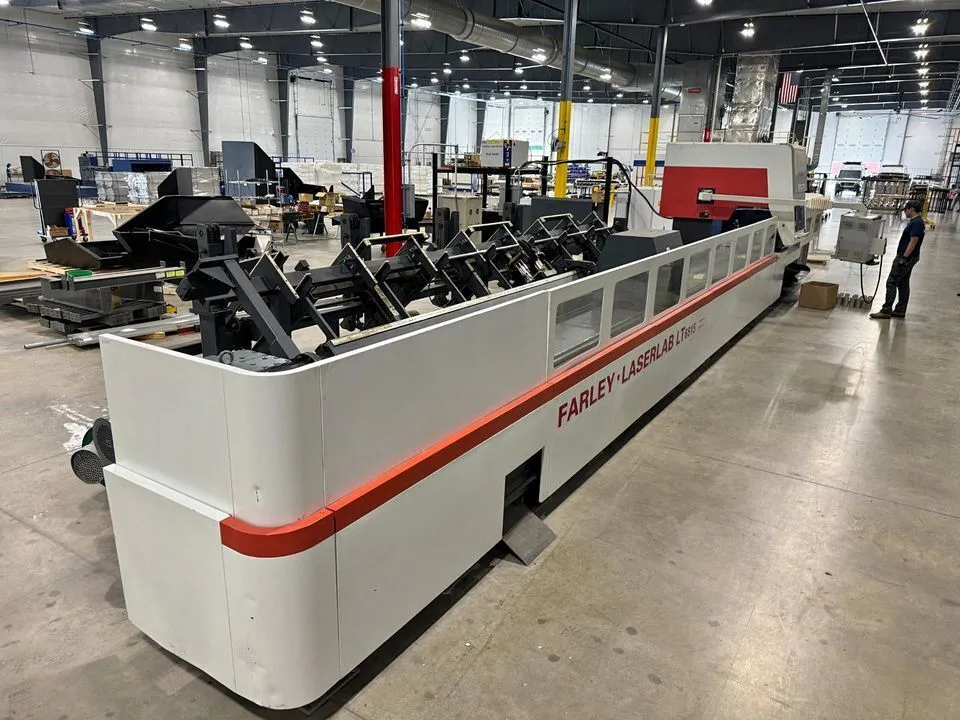

Farley Laserlab LT6515 2000 kW Tube Laser (2018)

Farley Laserlab LT6515 2000 kW Tube Laser (2018)

X-AXIS TRAVELS: 0-6500mm RANGE +/- 0.05mm POSITION ACCURACY 90m/Min MAX RUNNING SPEED

Y-AXIS TRAVELS: 0-200mm RANGE +/- 0.05mm POSITION ACCURACY 30m/Min MAX RUNNING SPEED

Z-AXIS TRAVELS: 0-170mm RANGE +/- 0.05mm POSITION ACCURACY 30m/Min MAX RUNNING SPEED

ROTARY SPEED 540⁰ /SECRound Tueb Diameter: 7/8" to 7”
Square Tube: 7/8" x 7/8” to 4-3/4” x 4-3/4
Bar Load Length: 137” to 256” (11.4’ to 21.3’) (3.5 m to 6.5m)
Bar Unload Max Length: 39” (1.5m) UPGRADABLE TO 6.5m
Laser Power: IPG YLS-2000 Fiber Resonator
Material Types: Stainless Steel, Mild Steel, Aluminum

Power Supply - 480 3Ph
