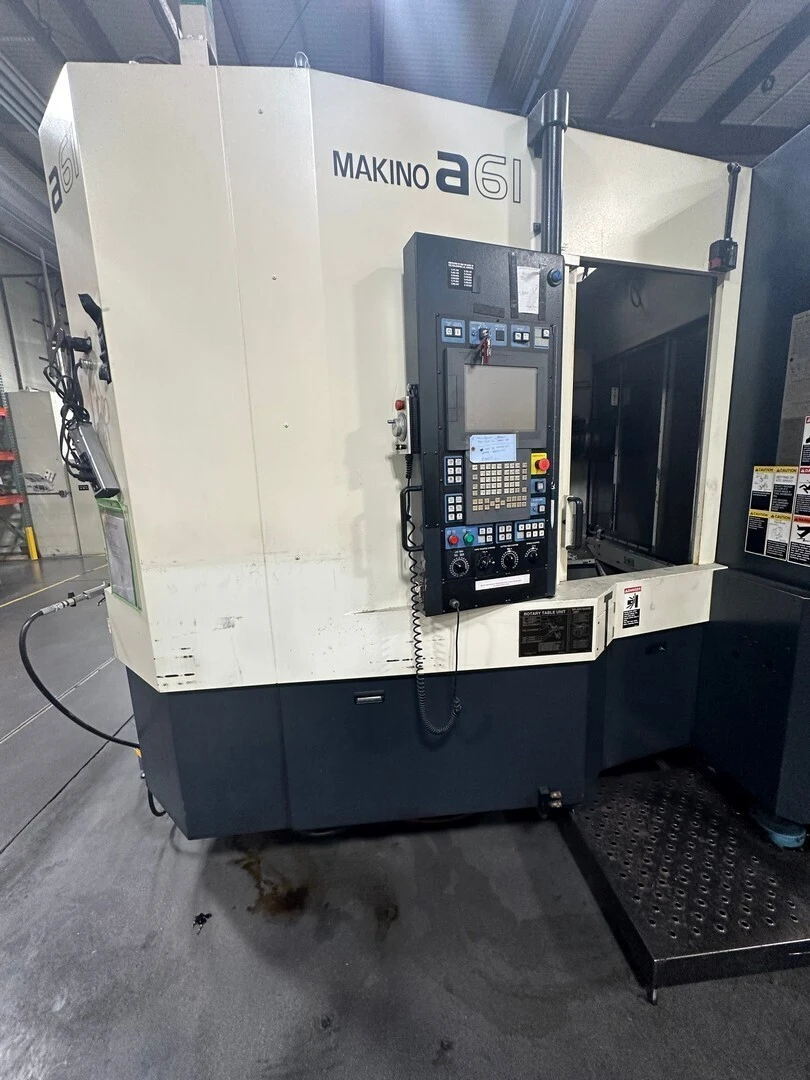

Makino a61 4 Axis Horizontal Machining Center (2006)

Makino a61 4 Axis Horizontal Machining Center (2006)
Specifications:
Pallet Size............ 19.7" X 19.7" (2)
Pallet Indexing........ Full 4th / Fully Contour
Max Pallet Load........ 1, 100 Lbs.
X Axis Travel.......... 28.7"
Y Axis Travel.......... 25.6"
Z Axis Travel.......... 28.7"
Spndl Nost To Pallet... 2.76" - 31.5"
Spindle Motor.......... 30 Hp
Spindle Speed.......... 12, 000 Rpm
Spindle Taper.......... Cat40
Pallet Change Time..... 8 Sec.
Rapid Traverse (X, Y, Z). 1, 960 Ipm
Max Cutting Feedrate... 1, 960 Ipm
Tool Capacity.......... 60 Atc
Maximum Tool Weight.... 26.4 Lbs.
Tool To Tool Time...... .9 Sec.
