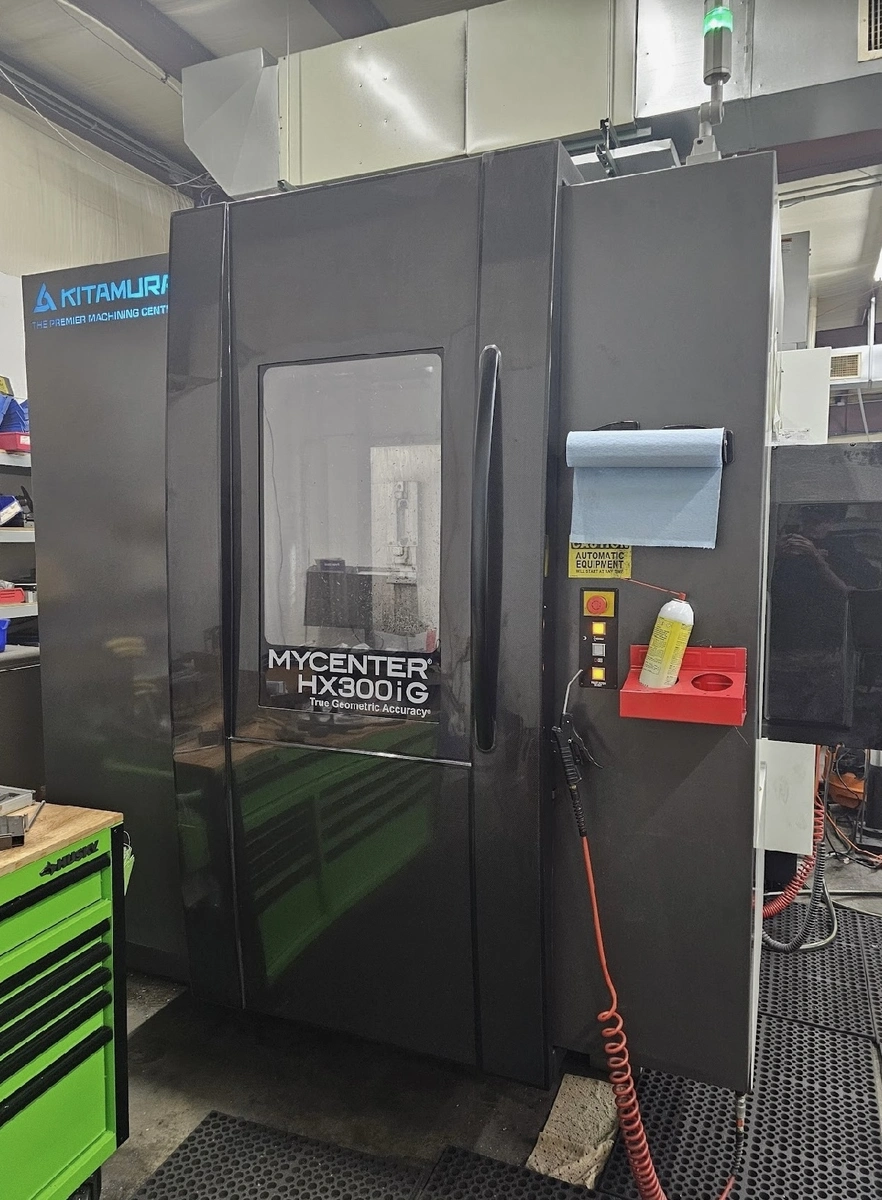

Kitamura HX300iG 4 Axis Horizontal Machining Center (2020)

Kitamura HX300iG 4 Axis Horizontal Machining Center (2020)

Built New 2019 Installed 2020

Table Size: 16” x 16” (400 x 400mm)
Travel (X, Y, Z): 18.1” x 20.1” x 22.0”
(460 x 510 x 560mm)
Spindle Taper: NST No. 40
Spindle Speed: 40~15,000rpm **20,000, 30,000 Option
Tool Storage Capacity: 50
Tool Change Time
(T-T/C-C):
1.3 Sec. /2.5 Sec.
Rapid Feed (X,Y,Z)
Rapid Feed (B) 2,362ipm (60m/min)
54,000deg./min. (150rpm)
Power Requirement: 45KVA

Features
• Drastically reduces set-up times for highly complex parts requiring multiple operations

• Amazingly small footprint saves on valuable floor space

• Positioning Accuracy: ±0.000039”/Full Stroke, Repeatability: ±0.00002”

• Ultra high speed rapid feed rates of 2,362ipm

• High Speed 4th axis rotary table, Integral Motor Driven 54,000deg/min (150rpm) rapids

• 2-Station APC is automation ready and field expandable up to 8 pallets for unmanned operation potential

• High power, high-speed processing Arumatik-Mi CNC with 67 million pulse encoder technology

• Powerful 15,000rpm, 30HP, dual contact spindle - Optional 20,000rpm and 30,000rpm spindle speeds Available

• Ballscrew Cooling and Linear Scale Feedback in all axes

• Ability to add 400mm tables in the field as an option
