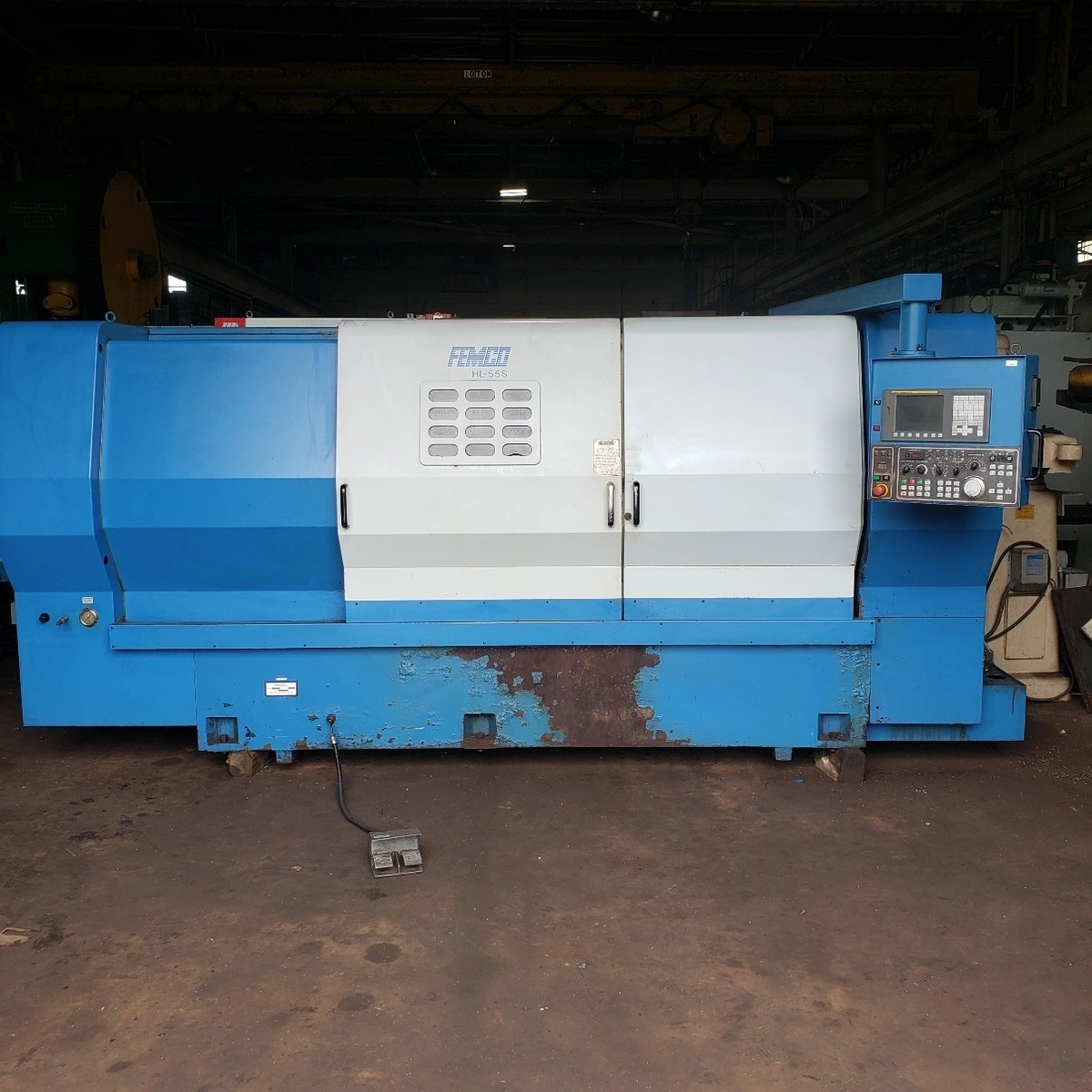

FEMCO HL-55S CNC LATHE (2005)

2005 FEMCO HL-55S CNC LATHE

Max Turning Diameter: 25.4″
Max Turning Length: 42.12″
Max Bar Capacity: 4.65″
Swing Over Bed: 28.4″
Distance Between Centers: 46.4″
Travel X Axis Travel: 13.4″
Travel Z Axis Travel: 47.6″
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Z Axis: 591 IPM
Spindle Nose: A2-11
Spindle Bore: 5.2″
Spindle Speed: 25-2500 RPM
Spindle Motor: 35 HP
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Tailstock Body Travel: 14.3″
Tailstock Quill Dia.: 3.54″
Tailstock Quill Stroke: 4.72″
Tailstock Taper: MT-5
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 68 Amps
