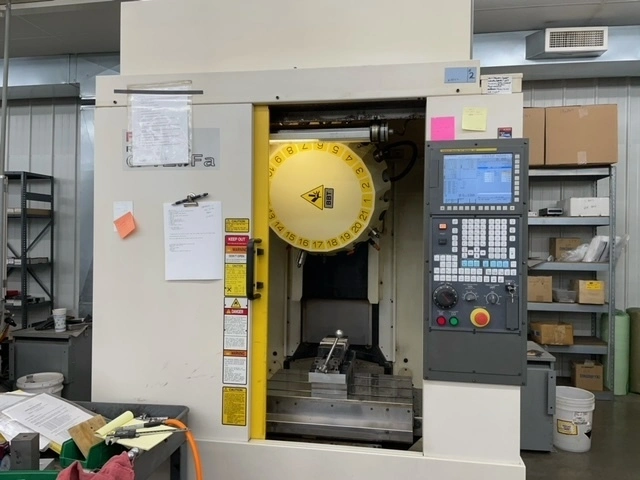

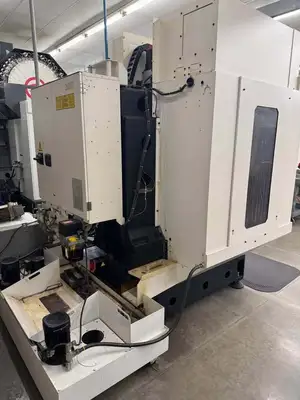

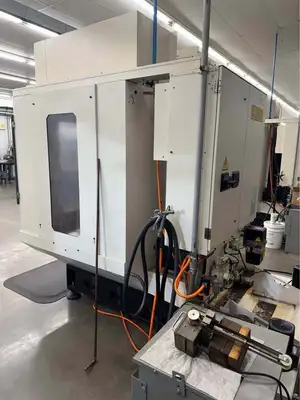

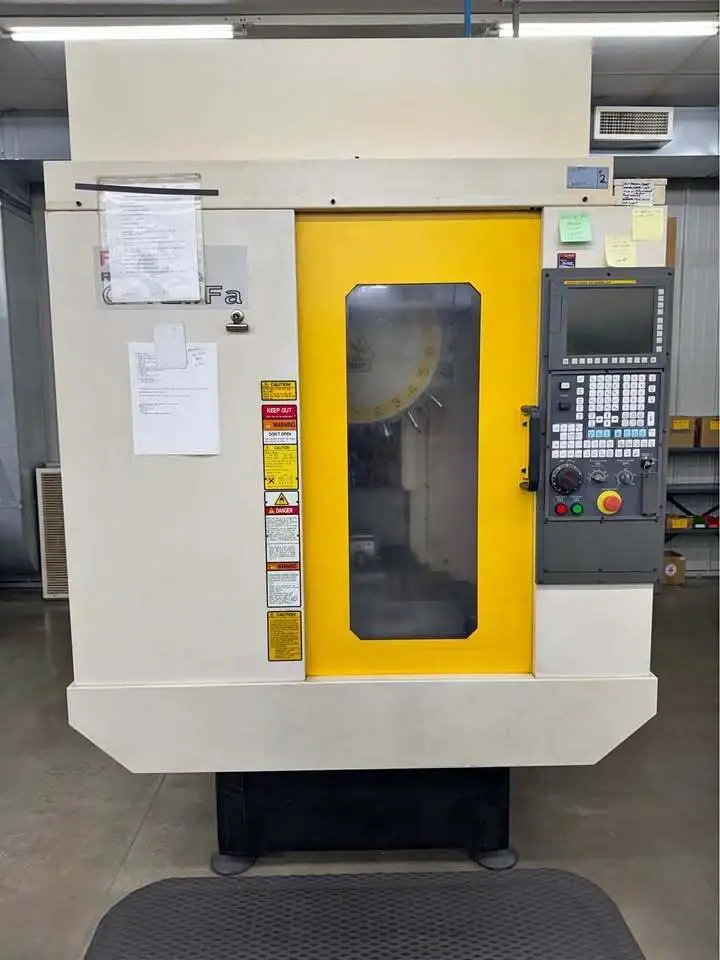

Fanuc Robodrill Alpha-T21iF 3 Axis Vertical Machining Center (2012)
Have one to sell?
ConditionUsed
1 available
3 Axis
Fanuc Robodrill Alpha-T21iF 3 Axis Vertical Machining Center (2012)
Table Size: 25.6" X 15.7"
Machine Travels (X/Y/Z): 19.7"/ 15.7" / 13"
Spindle To Table Distance: 5.9" To 18.9" Plus 4.25" For Riser
Spindle Center To Column Distance: 15.748"
Table Capacity: 440 Lbs
Spindle Taper: Bt-30 Big Plus Taper Spindle
Spindle Speeds: 100 To 10,000 Rpm
Rapid Traverse Rate (X/Y/Z): 2125 Ipm
Maximum Cutting Feed Rate: 0.039 To 1181 Ipm
Tool Changer Style: Bi-Directional High-Speed Tool Turret
Tool Changer Capacity: 21 Stations
Tool Change Time: .9 / 1.1 Seconds Tool To Tool
Max Tool Length: 9.8"
Max Tool Weight: 6.6 Lbs.
Spindle Drive: 7.3 / 5 Hp (10 Min Rating / Continuous Rating)

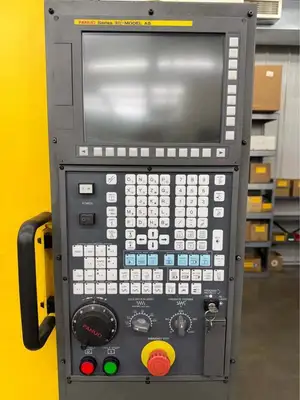

Fanuc control: 31-i Model A5 [ 5 axis wired ]
*Hours 7,173.
To be sold without the Koma 5-axis table. Basically a 3-axis machine without the 5-axis table installed.
