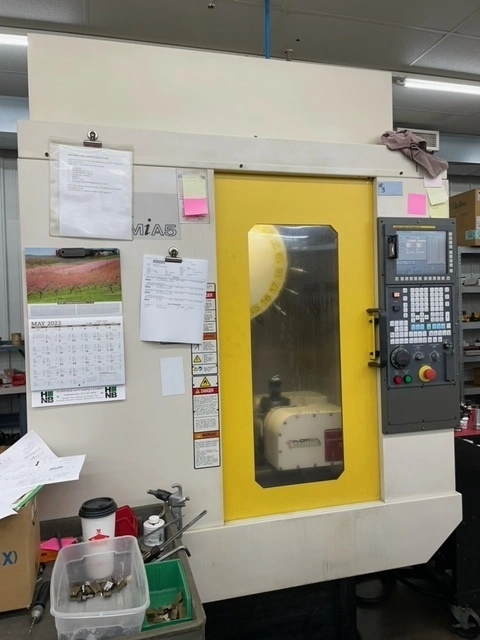

Fanuc Robodrill Alpha D21MiA5 5 Axis Machining Center (2013)
Have one to sell?
ConditionUsed
1 available
10000 RPM With Koma 5 Axis Rotary Table
Fanuc Robodrill Alpha D21MiA5 5 Axis Machining Center (2013)
X-Axis 19.68″
Y-Axis 15.74″
Z-Axis 12.99″
Table Size 25.59″ x 15.74″
Spindle Speed 10000 RPM
Spindle Taper BT-30 Big Plus
Spindle Motor 7.5 HP
Tools 21
Table Load Capacity 660 lbs.
Rapid Traverse Rates 2125 IPM
Max Tool Diameter 3.14″
Max Tool Length 9.84″
Max Tool Weight 6.6 lbs.
Machine Dimensions (L x W x H) 63.58″ x 80.3″ x 88″
Machine Weight 4409 lbs.
Spindle Torque 51.6 ft. lbs.
Tool Change Time (T – T / C – C) 0.9 / 1.6 Seconds
Koma 5 Axis Rotary Table
