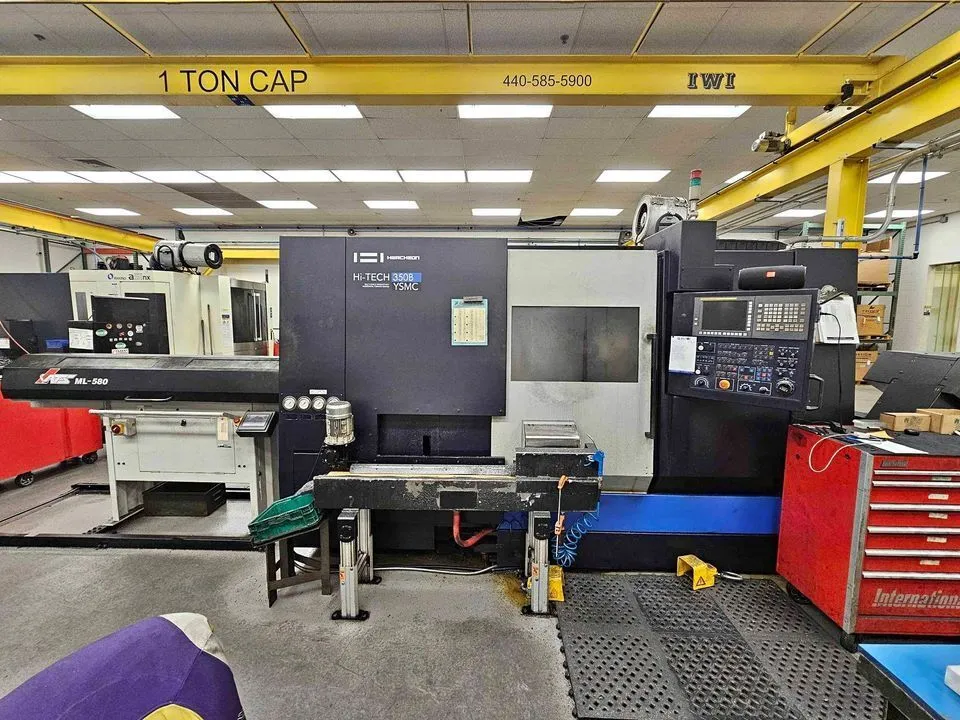

Hwacheon Hi-Tech 350BYSMC Twin Spindle Live Tool CNC Lathe (2016)
Have one to sell?
ConditionUsed
1 available
Dual spindle, Live Tool, Y Axis
Hwacheon Hi-Tech 350BYSMC Twin Spindle Live Tool CNC Lathe (2016)
Swing over bed: 27.56”
Max. cutting diameter: 16.5”
Max. cutting length: 26.02”
Max. Bar size: 3”
X-Axis Stroke: 11.02”
Z-Axis Stroke: 31.10”
Y-Axis Stroke: 4.7”
Spindle power: 30 / 25 HP
Spindle speed: 4000 RPM
Spindle torque: 245 / 206.3 Nm
Rapid speed: 787 / 393 / 944 IPM
Tool shank: BMT-65 / BH
Number of tools: 12
Sub spindle speed: 4000 RPM
Sub spindle motor: 10 / 7.5 HP
Machine weight: 14,100 lbs
ATS ML580 Bar Feeder
Live tooling BMT65
Tool Presetter
Parts Catcher & Conveyor
