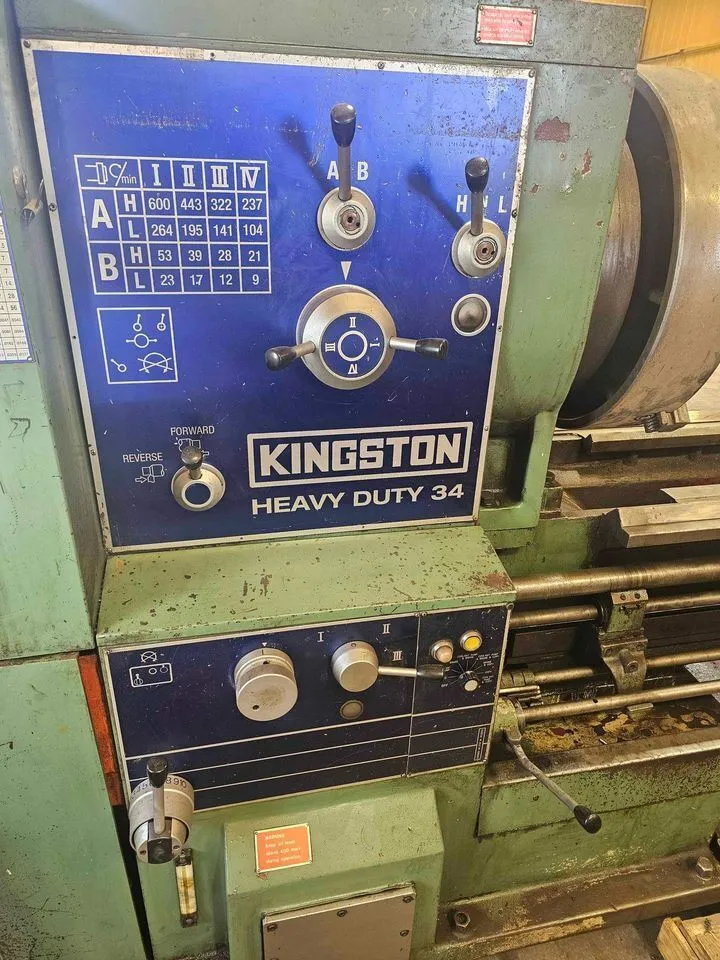

Kingston HPX-34120 Heavy Duty 34" x 120" Big Bore Lathe (2013)

Kingston Heavy Duty 34" x 120" Big Bore Lathe (2013)

Swing Over Bed (In.) 34
Swing Over Cross Slide (In.) 25.1
Swing Over Gap (In.) 45.6
Distance Between Centers (In.) 120
Width of Bed (In.) 22
Height from Floor to Work Center (In.) 48.6
Spindle Through Bore (In.) 9.25
Spindle Nose: ASA-A2-15
Headstock Spindle Adaptor: ASA-450 to MT#6
Number of Spindle Speeds 16
Range of Spindle Speed (RPM) 9-600
Number of Feed Changes
Fine
Normal
Coarse
20
40
30
Range of Feeds per Revolution - Longitudinal (In.) .00048 - .0168
Range of Feeds per Revolution - Cross (In.) .00024 - .0084
Diameter and Pitch of Leadscrew (Diameter | TPI) 1.9 | 2
Number of Inch Threads 40
Range of Inch Thread (TPI) 2 - 28
Number of Inch Threads - Coarse 16
Range of Inch Thread - Coarse (TPI) 5/8 - 8
Number of Metric Threads
31
Range of Metric Thread (mm)
1 - 14
Number of Metric Threads - Coarse 61
Range of Metric Thread - Coarse (mm) 16 - 200
Number of Module Pitch Threads 20
Range of Module Pitch Thread (M.P.) .5 - 7
Number of Module Pitch Threads - Coarse 30
Range of Module Pitch Thread - Coarse (M.P.) 8 - 56
Number of Diametral Pitch Threads
40
Range of Diametral Pitch Thread (D.P.) 56 - 4
Number of Diametral Pitch Threads - Coarse 30
Range of Diametral Pitch Thread - Coarse (D.P.) 3.5 - .5
Compound Slide Travel (Max./In.) 9.4
Cross Slide Travel (Max./In.) 21.2
Tailstock Quill Travel (In.) 11.8
Tailstock Quill Diameter (In.) 5.1
Tailstock Quill Taper MT-6
Tailstock Quill Speed Ratios 1:1 | 4:1
Main Drive Motor (HP | kW)
Power: 30 HP, 230V/460V, 3 Phase, 60 Cycle Motor, Switch and Wiring Complete
