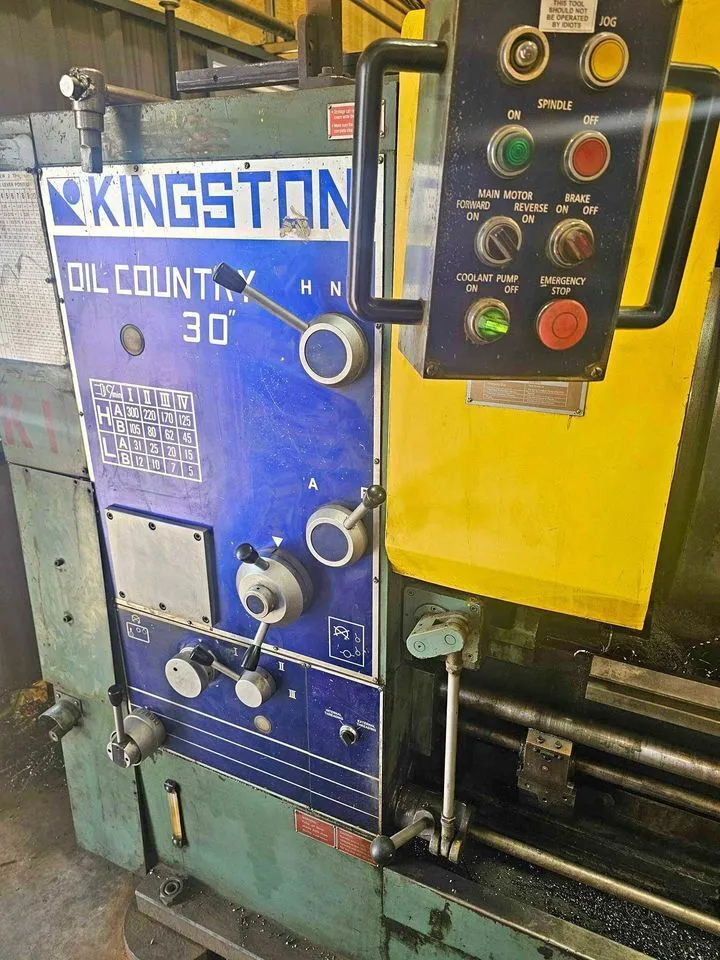

Kingston Model HK-3000 Oil Country Engine Lathe

Kingston Model HK-3000 Oil Country Engine Lathe

Swing Over Bed 30″
Swing Over Cross Slide 20.75″
Distance Between Centers 118”
Width of Bed 22″
Height of Center from Leg Bottom 46.44”
Spindle Bore 12.5″
Taper of Spindle Bore & Center 3/4” Taper per Foot
Type of Spindle Nose ASA A2-20
Number of Spindle Speeds 16
Spindle RPM 5 – 300 RPM
Number of Feed Changes 40 Kinds
Range of Feeds per Revolution 0.0024”-0.0337″
Longitudinal Cross 1/2 of Longitudinal Feed
Leadscrew Diam. & Threads per Inch 1.875” / 2 TPI
Threading inch/metric
Threading range Whitworth 1 to 28 TPI (50)
Threading range Metric 1 to 28mm pitch (41)
Threading range Module 0.5 to 7 M (20)
Threading range D.P. 4 to 56 D.P. (40)
Maximum Travel of Compound 9.75″
Maximum Travel of Cross Slide 21.25″
Tailstock Quill Travel 11.75″
Tailstock Quill Diameter 5.125″
Tailstock Center M.T. #6
Main Drive Motor 20 HP (15kw), 6P
Coolant Pump Motor 1/4 HP
Floor Space W: 86″ L: 205″
Machine Weight 17,700
