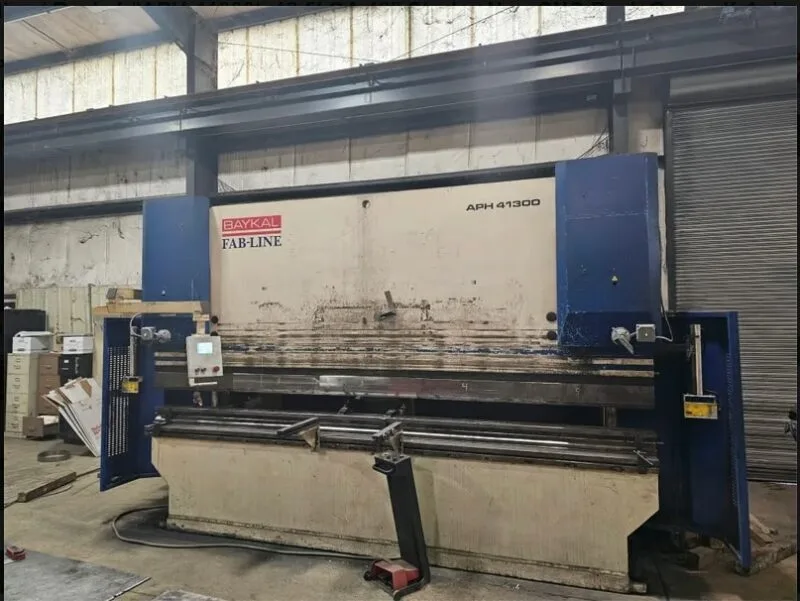

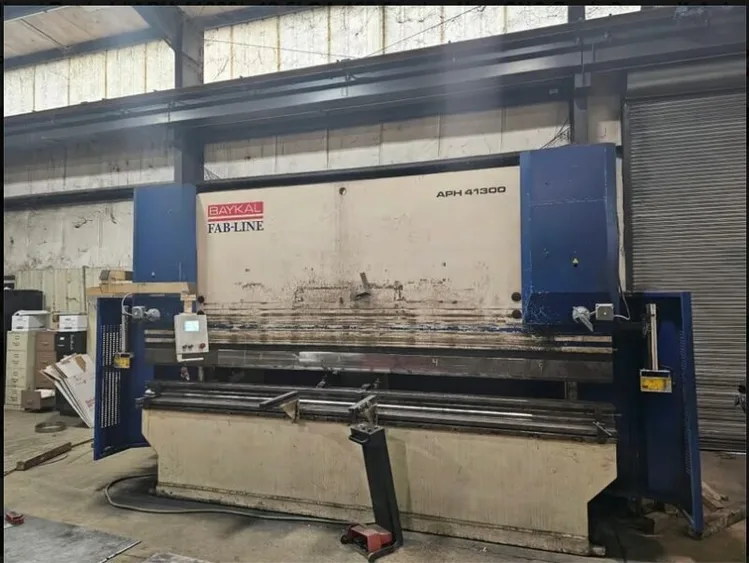

Baykal Fabline APH-41300T 300 Ton Hydraulic Press brake (2016)

Description

300 Ton x 12'
X Backgauging System
Ram repeatability of +/- .0004″
Downstroke synchronized cylinders which are fully supported in low friction slideways and roller gibs
Rigid welded monoblock steel frame for minimum deflection under load
Full electronic synchronization with proportional valve technology
One piece forged cylinders precision machined and honed for accuracy
Maximum bend accuracy and repeatability assured through constant monitoring and correction of beam parallelism by the system
Precision controlled X axis back gauge precision ball screw driven with AC servo motor providing high speed and accuracy
Two slotted support arms on linear guides for easy positioning both along the bed and vertically via acme screw and handle along with being able to lock (on 13 foot machines you have 4)
Stroke depth measured by high precision GVI Misure linear scales which are bed referenced
Cartridge valves(HOWE mounted in a single steel manifold to reduce heat and wear
Standard Baykal Mechanical Crowning System
Compact Electrical cabinet with ventilation
Dual Footswitch with Emergency stop
ANSI B.11 compliable
Large stroke and open heights to provide maximum bending flexibility
