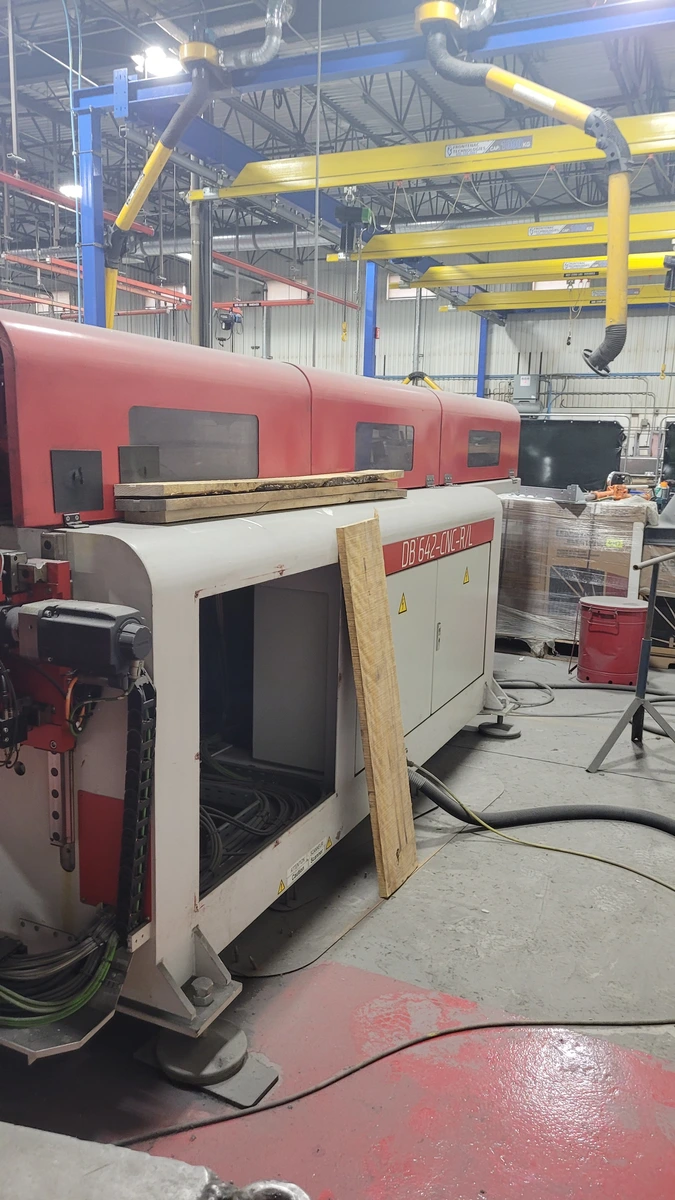

Transfluid DB 642-CNC-R/L 1.625" CNC Tube Bender (2019)

Transfluid DB 642-CNC-R/L 1.625" CNC Tube Bender (2019)

Range 1/4" - 1 5/8"
Max. capacity 1 5/8" x .120" (mild steel) 1 5/8" x .120" (stainless steel)
Max. Radii 6.6"
Usable length 6.5 ft 10 ft (standard) 15 ftmm 20 ft (special)
Speed of bending axis 180 °/sec
Number of CNC axes 11
Power bending axis servo-electric
Operating voltage 400 Volt - 60 Hz - 3 Ph. - 30 KW
Voltage of the control 24v
Dimensions 232 x 65 x 59
Weight 8200 Lbs

ECONOMICAL - AUTOMATED - PROCESSES

With our clockwise/counterclockwise bending machines the most complex bends become reality with great accuracy.

The Bending head of our fully electric CNC R/L series can be positioned horizontally and vertically, including 360° rotation axis for a change of bending direction (right- or left-hand).

For better efficiency. The electric axes can be programmed in synchronicity to give optimum cycle times.Tools for bending on multiple levels with automated tool change makes it possible to achieve various radii and the most complex geometries on tubes.

Our robust machine construction means customers have come to expect decades of heavy use. This machine is supplied with an easy-to-use Siemens CNC control system, which utilizes an intuitive program in a Windows based operating system set up for networking.
