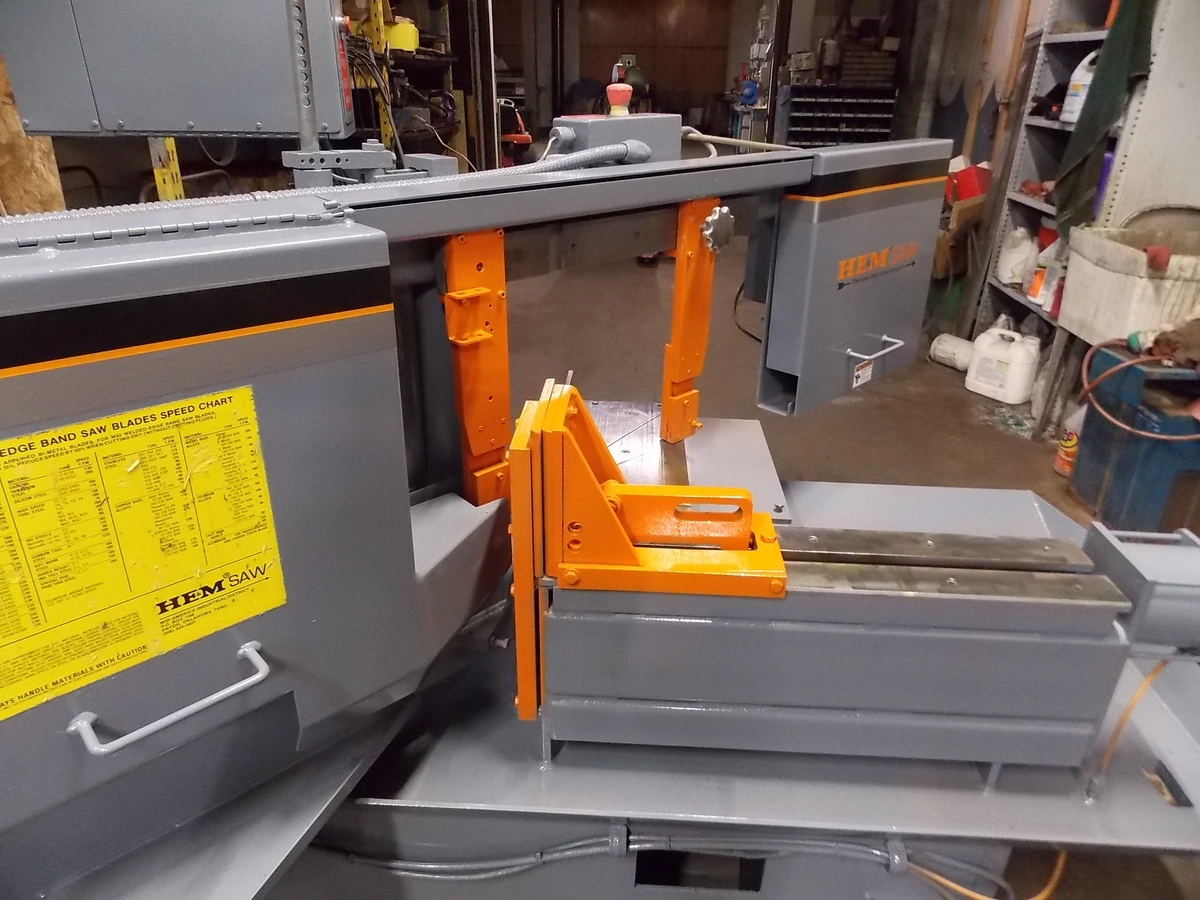

HEM H90A Sidewinder 13" x 16" Horizontal Production Band Saw (2007)
Have one to sell?
ConditionUsed
1 available
Completely reconditioned & refinished. The HEM Sidewinder High Speed, High Capacity, with up to 60 degree Mitering Band Saw is an ideal combination of flexibility and strength. It can cut at two different angles, enabling a wider range of applications and opening up additional cutting possibilities. It’s efficiency and versatility make the HEM Sidewinder a solid choice for metal sawing shops.
Metal Sawing technology is proud to sell HemSaw band saws. The company has a well-earned reputation for durable, reliable machines that serve customers for years.
HEM H90A Sidewinder 13" x 16" Horizontal Production Band Saw (2007)
• 12.75″ X 16″ (W) Capacity @ 90 Degrees (L)
• 10″ X 10″ (W) Capacity @ 45 Degrees (L)
• 1″ X 13’6″ X . 035″ Blade
• 3 HP Motor
• All Function Control – Easy View Console
• 0-24″ Stroke Bar-Feed System W/ 4 Indexes
• Vertical Alignment Bar
• Manual Angle Adj. On Protractor Ea. 15 Deg
• Manual Blade Tension
• Out Of Stock Switch
• Blade Break Switch
• Adjustable Clamping Pressure (0-1,700 Lbs)
• Adjustable Feed Rate & Cutting Pressure
• Variable Blade Speed (60-300 Sfpm)
• 18″ Exit Support
• Cut Watcher System
• Blade Chip Brush
• Flat Carbide Blade Guides
• Blade Guards
• Manual Guide Arm Adjustment
• (2) Hold Down Fixtures
• Flood Coolant System
• Wash Down Hose
• 85 Psi, 3-5 Cfm Minimum Air Requirement
Miter Cutting Up To 60 degree
1" Blade Width
infinitely Variable Speeds 60-300 SFPM
Built in Coolant
Adjustable Cutting Pressure 0-800 lbs
Adjustable Clamping Pressure 0-1700 lbs
Adjustable Feed Rate 0-3 IPS
Rebuilt (2007)
