Robotic Welding System 6 Axis ABB6400 EPP Plasma Precision Esab EPP-360 Plasmarc 360 (2011)

Robotic Welding System 6 Axis ABB400 EPP Plasma Precision Esab EPP-360 Plasmarc 360 (2002/2011)

EPP-360 Plasma Power supply never used in production.
Manufactured 2011
575V/3 Ph input
PT-36 Plasma cutting torch.
M3 Can arc starter, plasma gas & shield gas controls.
Vision 50 plasma control and robotic control interface
Fully automated, touch screen operator interface
Process set-up by operator, manual file selection
Plasma coolant circulator/hose/cables
Power cable for work and ground connections
Shield gas power and can bus cables.
Handheld speed loader assembly

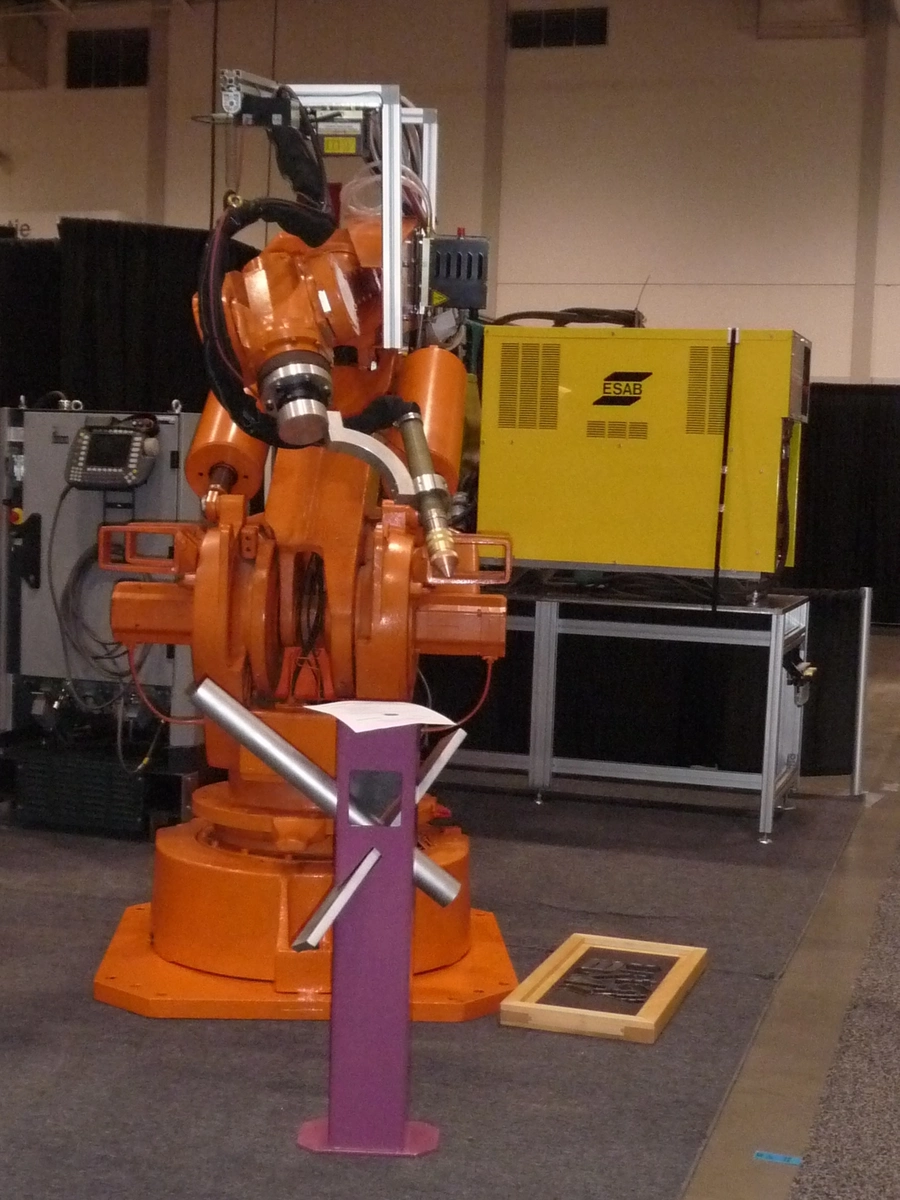

6 Axis ABB 6400 robot, model M97, S4C controller, 2.4 m reach, 120 kg payload, manufactured 2002. The robot is interfaced with the ESAB plasma machine. Maximum size horizontal part the system can process is 4ftx8ft.
This system is capable to cut 3D pats.
