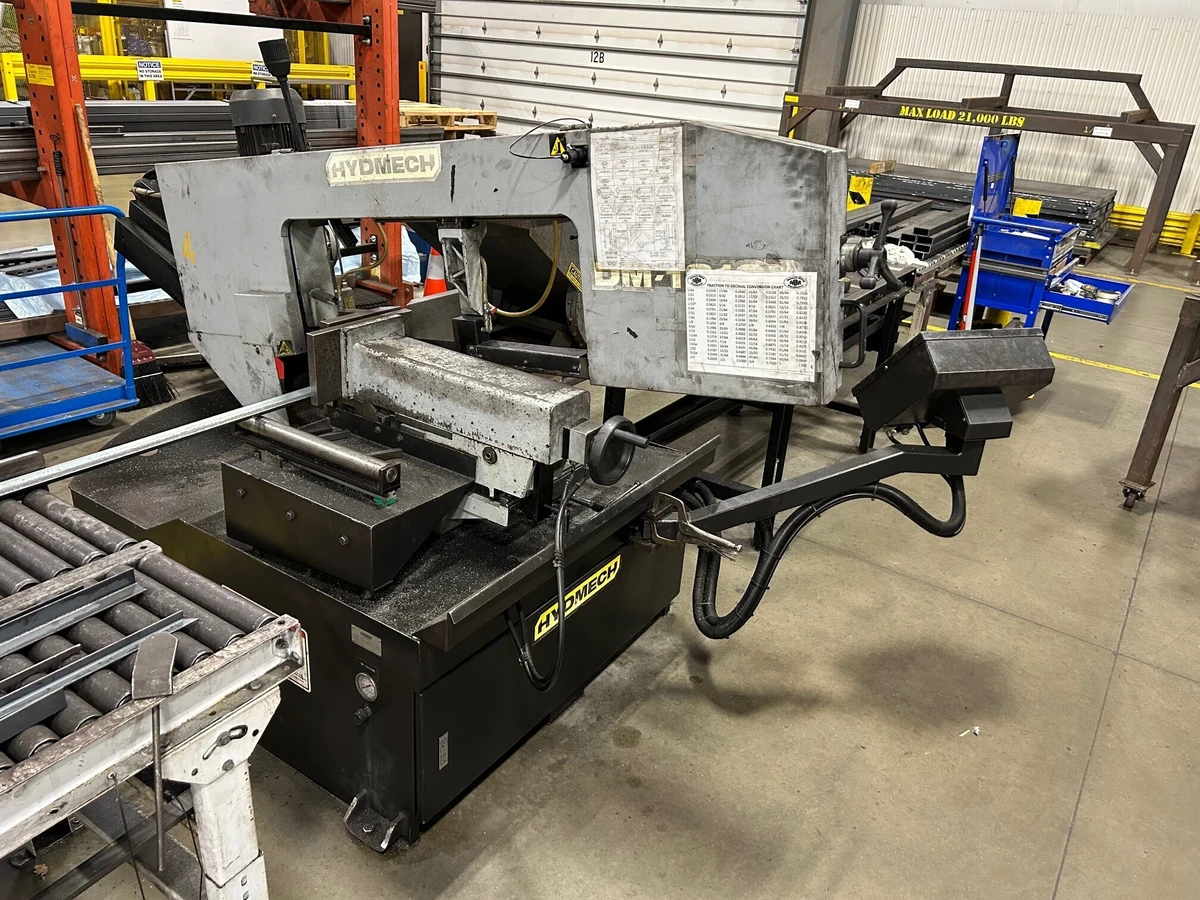

HydMech DM-1318 13" x 18" Horizontal Band Saw
Have one to sell?
ConditionUsed
1 available
The DM-1318P double miter, semi-automatic band saw provides exceptional miter cutting for medium duty applications. Its versatile swing head with easy to read angle scale saves operator time. The heavy-duty gearbox and motor assembly ensures the DM-1318P will deliver maximum productivity. The cast iron double swivel head features an easy to read angle scale and “quick” stops at 90, 45, and 60 degree positions. The cast iron vise slides on linear ways which can be easily positioned to either the left or right side of the head and includes a quick release mechanism for rapid positioning.
Featuring a 13″H x 17 3/4″ W capacity at 90°, 5.5 HP motor, and 1 1/4″ blade, the DM-1318P is a versatile double miter band saw.
HydMech DM-1318 13" x 18" Horizontal Band Saw
Capacity Rectangular (h x w) Round
90° 13″ x 17 3/4″ 13″
45° Left 11 3/4″ x 11 3/4″ 11 3/4″
45° Right 11 3/4″ x 11 3/4″ 11 3/4″
30° Left 7 3/4″ x 7 3/4″ 7 3/4″
30° Right 7 3/4″ x 7 3/4″ 7 3/4″
Blade Size 1 1/4” x 14’ 9”
Blade Drive 5.5 HP VFD
Machine Voltage 480 v (all other voltages require optional transformer)
Blade Speed 65-330 SFM
Coolant Tank Capacity 21 Gallons
Machine Weight 2,515 lbs.
Table Height 35”
Dimensions (w x l x h) 130” x 69” x 89”
