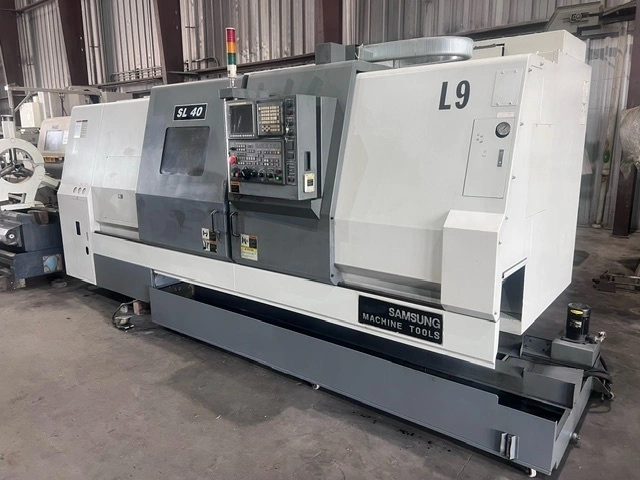

Samsung Model SL-40/1500 CNC Lathe (2014)
Have one to sell?
ConditionUsed
1 available
Fanuc 0i-TD Control
Chip Conveyor
Coolant Tank
18" Hydraulic 3 Jaw Chuck
Programmable Hydraulic Tailstock (body & quill)
2 Speed Geared Spindle
Box Way Construction
Tool Presetter
Misc. Tooling Available
Available Manuals
Samsung Model SL-40/1500 CNC Lathe (2014)
Swing: 26.8"
Turning Diameter: 19.7"
Center Distance: 60.2"
Chuck Size: 18”
Bar Capacity: 4.6” ( 5.2 “ )
X Axis Travel…11”
Z Axis Travel….63.19”
Rapid Traverse (X/Z) …472/591 IPM
Spindle Nose .. A2-11
Spindle Speed (RPM) 0-1800 RPM
30 HP
Machine Dimensions …197” x 75”
Machine Weight ….20,500 LBS
Fanuc 0i-TD Control
- Chip Conveyor
- Coolant Tank
- 18" Hydraulic 3 Jaw Chuck
- Programmable Hydraulic Tailstock (body & quill)
- 2 Speed Geared Spindle
- Box Way Construction
- Tool Presetter
- Misc. Tooling Available
- Available Manuals
