Multiax Model Multiax A 5 Axis Heavy Duty Closed Structure Gantry Type Machining Center (2020)

Multiax Model Multiax A 5 Axis Gantry Type Machining Center (2020)

Number of axes
5-axis, 6-axis
Spindle orientation
swiveling-spindle
Structure
mobile gantry, with moving table, with fixed table, fixed-bed
Machined material
for aluminum, for copper, for non-ferrous metals, for brass, for composites, for wood, for plastics, for ceramics
Spindle mount
HSK A-63, HSK F63
Number of tool stations
24 tools, 32 outils, 16 tools, 8 tools
Applications
drilling, cutting, for the automobile industry, for the aeronautical industry, for large workpieces, for molds, for the mold industry, for large-diameter parts, for graphite machining, for vehicles, for aeronautics, for drilling, for profiles, for the aluminum industry, for aluminum profiles, for graphite, for the plastics industry
Other characteristics
CE, milling, high-speed, high-productivity, high-speed, two-station, wet, rigid, modular, with integrated pallet changer, multi-spindle, ultrasonic, conveyor belt, single-head
X travel
Min.: 2,600 mm
(102 in)

Max.: 9,500 mm
(374 in)

2,600 mm, 9,500 mm
(102 in, 374 in)

Y travel
Min.: 2,500 mm
(98 in)

Max.: 36,000 mm
(1,417 in)

2,500 mm, 36,000 mm
(98 in, 1,417 in)

Z travel
Min.: 1,200 mm
(47 in)

Max.: 4,000 mm
(157 in)

1,200 mm, 4,000 mm
(47 in, 157 in)

Rotational speed
Min.: 18,000 rpm
(113,097 rad.min-1)

Max.: 24,000 rpm
(150,796 rad.min-1)

Power
10 kW, 42 kW
(13.6 hp, 57.1 hp)

Workpiece max height
Min.: 1 mm
(0 in)

Max.: 3,000 mm
(118 in)

Work feed X-axis
60,000 mm/min
(39 in/s)

Work feed Y-axis
Min.: 60,000 mm/min
(39 in/s)

60,000 mm/min
(39 in/s)

Work feed Z-axis
Min.: 30,000 mm/min
(20 in/s)

30 mm/min
(0 in/s)

Positioning accuracy
Min.: 25 µm

Max.: 80 µm

Repeatability
Min.: 12 µm

Max.: 40 µm

Tool-changing time
Min.: 8 s

Max.: 16 s

Weight
Min.: 12,000 kg
(26,455.47 lb)

Max.: 40,000 kg
(88,184.9 lb)

Overall length
Min.: 5,900 mm
(232.3 in)

Max.: 14,000 mm
(551.2 in)

Overall width
4,700 mm, 40,000 mm
(185 in, 1,574.8 in)

Overall height
4,600 mm, 11,000 mm
(181.1 in, 433.1 in)

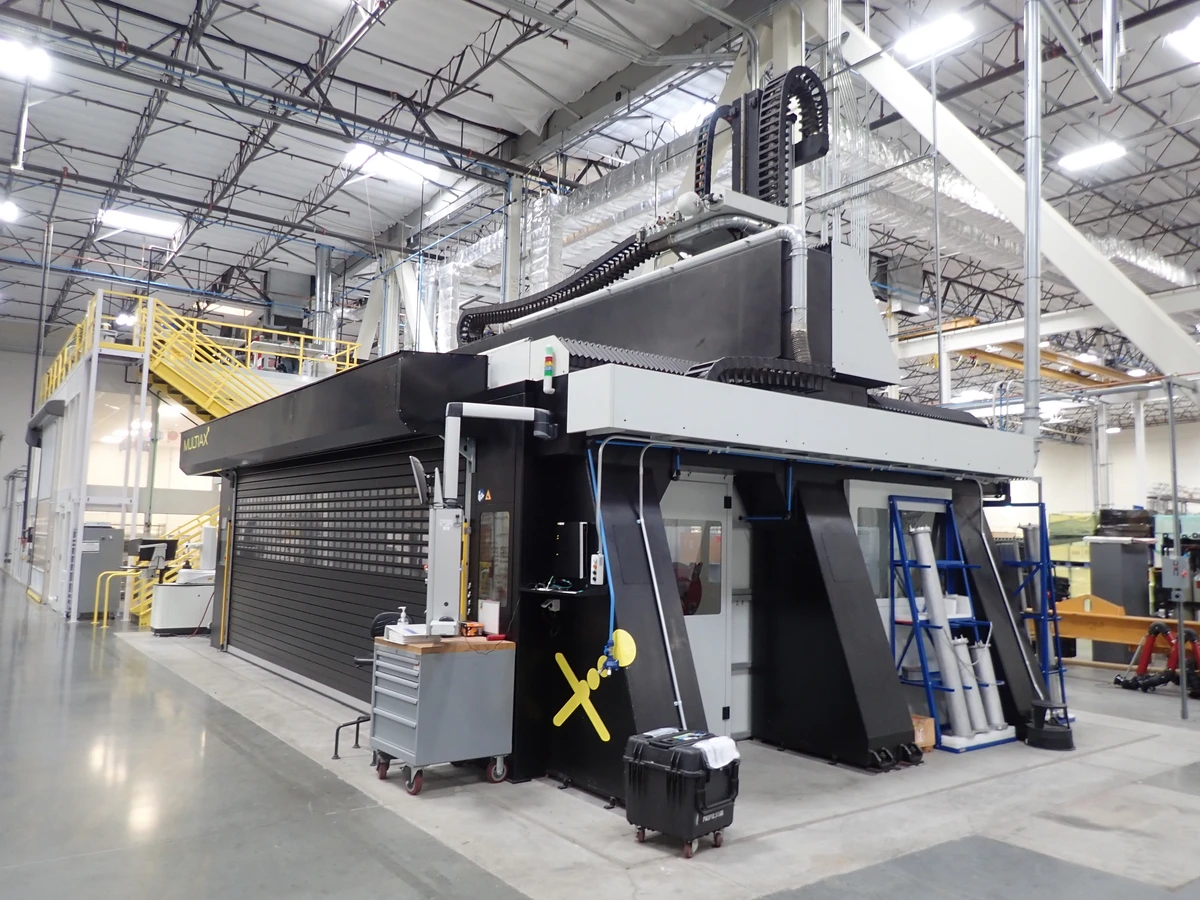

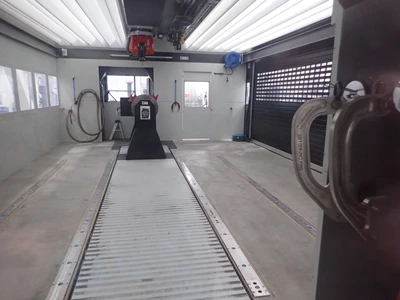

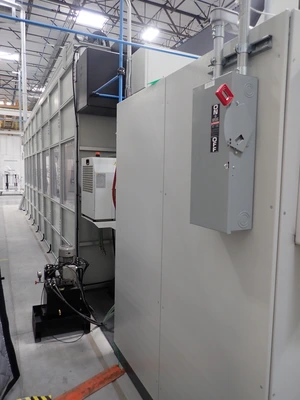

This massive 5-axis high-bridge CNC machine is ideal for machining large workpieces. The most common automated CNC machining operations include milling, cutting, drilling, countersinking, riveting and fastening applications, etc.
The modular travelling bridge design with a wide range of optional components allows the User to machine large workpieces of various sizes while ensuring high cutting speeds, high precision and a smooth surface finish.
High-level guides on Y-parallel side supports in various executions in terms of design, weight and component dimensions, addressing different processes in different industries, characterized by different necessities and expectations.
These 5-axis CNC machines are ideal for complex, high-speed CNC machining of printed or laminated parts, even working on large parts in the aerospace, automotive and marine industries.
Typical materials to be machined are: aluminium-based alloys, composite materials (fibreglass, carbon fibre, sandwich, honeycomb), tool plates, resins, epoxy resins, FRPs.
In some cases, we integrate very useful devices and functions that give greater added value to users such as, for example, automated handling systems for loading/unloading large components, vision, measurement and control systems.
