DMG MORI Lasertec 6600 DED Hybrid 5 Axis Multi Tasking Machining Center (2019)

DMG MORI Lasertec 6600 DED Hybrid 5 Axis Multi Tasking Machining Center (2019)

Laser Metal Deposition & 5-axis machine

Max. X-axis travel
40.9 in.
Max. Y-axis travel
24 in.
Max. Z-axis travel
153.1 in.
Laser power standard
6300 W

Up to 1,040 mm on the X-axis, -280 mm to +330 mm on the Y-axis, 3,890 mm on the Z-axis
Largest workpiece size: Φ1,010 mm × 3,702 mm
Suited for large workpieces including rocket engine parts for the aerospace industry, oil-well pipes for the energy industry and shafts for transport aircrafts

Efficient additive manufacturing and subtractive manufacturing on one machine with the linear axes (X-, Y-, and Z-axis), B-axis (turn-mill spindle), C-axis (Left spindle and Right spindle)

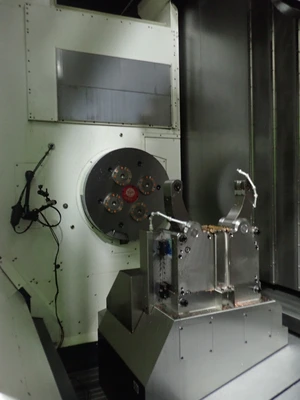

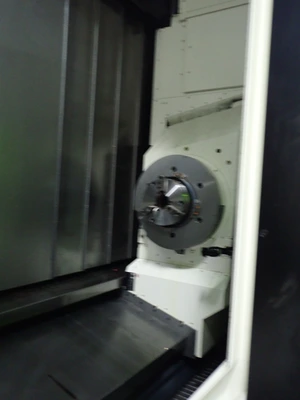

Synchronized operation of Left spindle and Right spindle that transfers workpieces between the two spindles to achieve streamlined additive manufacturing processes
Turn-Mill spindle equipped with the AM head and AM nozzle to carry out metal powder injection and laser irradiation simultaneously
Laser output - 2,000 W(standard), <4,000/6,000/8,000 W(option)

Movable and high-performance dust collection duct to prevent dust powder from scattering
Zero Sludge Coolant Tank that effectively collects fine sludge inside the coolant tank as standard
Laser sensor installed on the machine cover and window to detect laser before it penetrates the cover and stop it
