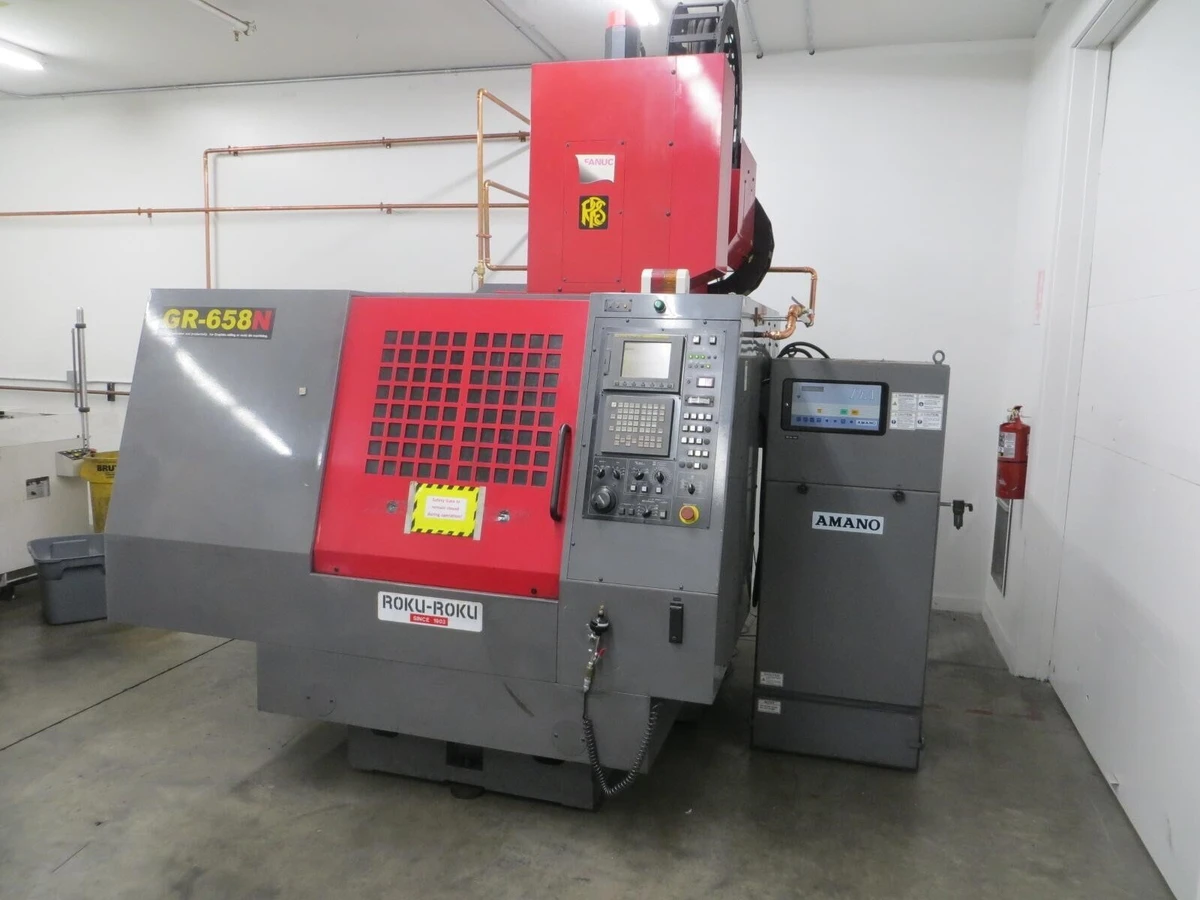

Roku Roku GR-658N High Speed Vertical Machining Center (2000)
Have one to sell?
ConditionUsed
1 available
High Speed Graphite Mill, Fanuc 16i-M CNC Control, Amano PiA Dust Collector, 32,000 RPM, 12-ATC
Fanuc 16i-M CNC Control, 12-Station Automatic Tool Changer, Table Mounted Tool Setter, 32,000 RPM Maximum Spindle Speeds, Amano PiA Dust Collector, Spindle Chiller, Assorted HSK Tool Holders and Collets, Assorted Manuals and Documentation
Roku-Roku GR-658N CNC High Speed Graphite Mill
X Axis 23.6" / 600mm
Y Axis 19.6" / 500mm
Z Axis 15.7" / 400mm
Table to Spindle Nose Distance: in (mm) 7.8 ~ 23.6" (200 ~ 600)
Table Height from Floor: in (mm) 31.5" (800)
Rapid Traverse Speed: in/min. (m/min.) 787 (20)
Cutting Speed (Normal Mode): in/min. (mm/min.) 0.01 – 315 (0.25 ~ 8000)
Cutting Speed (GR Super PC Mode): in/min. (m/min.) 787 (20)
Max. Workpiece Weight: lb (kg) 440 (200)
Coolant Tank Capacity: gal (L) None
Table Size: 29" x 27"
Spindle Taper: HSK
Spindle Speeds: 32,000 RPM
Tool Changer Style: Carousel
Tool Changer Capacity: 12 Tools
Electrics 220 Volt, 3 Phase 60 Cycle
Main Motor 8.4 HP
Main Unit Dimensions (in inches): Length: 90.00" Width: 93.00" Height: 115.00"
Fanuc 16i-M CNC Control, 12-Station Automatic Tool Changer, Table Mounted Tool Setter, 32,000 RPM Maximum Spindle Speeds, Amano PiA Dust Collector, Spindle Chiller, Assorted HSK Tool Holders and Collets, Assorted Manuals and Documentation
