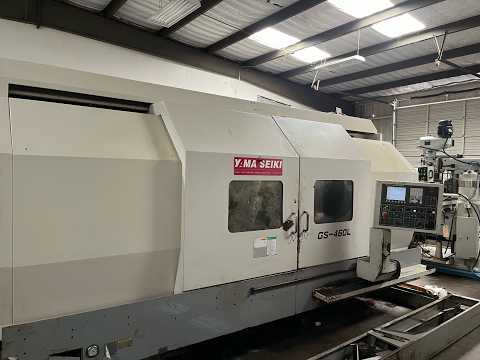

Yama Seiki GS-460L 29" x 79" CNC Lathe (2006)

YAMA SEIKI CNC LATHE

Specifications:
Model GS 460 L
Serial number 91C012
Year of manufacture 02/2006
CNC control Fanuc Oi-TC
Maximum swing 29”
Swing over saddle 28”
Maximum turning diameter 24”
Standard turning diameter 22”
Center distance 79”
Spindle bore 8”
Spindle nose A-2-15
Chuck 24 3/4” 3-jaw hydraulic, 10” bore
Main motor 50/60 hp.
Spindle speeds 6-671/1300 rpm, 2 speed gearbox
Travels, X-Z 13” x 80”
Turret stations 12 stations
Tailstock Yes, live quill, 6” travel
Programmable quill/body Yes, Yes
Positioning accuracy +/- 0.0002”
Repeatability accuracy +/- 0.0001”
Voltage 220/3/60
Power requirement 60 kVA
Coolant Yes, 168 gallons
Weight 33,000 lbs.
Machine dimensions 17’ 6” W x 8’ 6” L x 8’ 6” H
Chip pan dimensions 17’ 6” W x 8’ 6” L
Chip conveyor dimensions 15” X x 2’ 4” W x 6’ H
