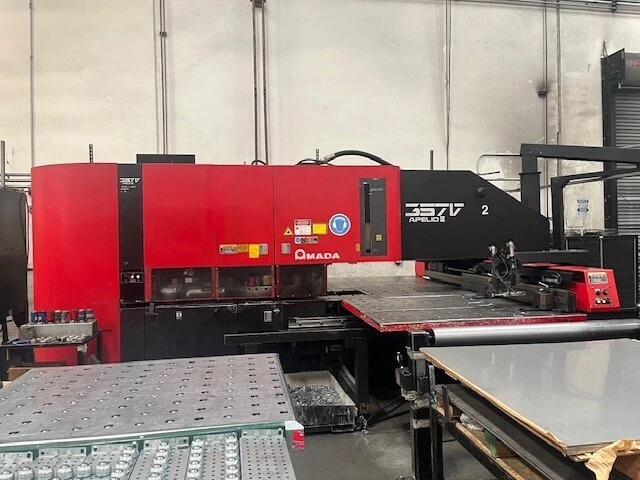

Amada 357V Apelio II 30 Ton Laser Punch Combo (2004)

Amada 357V Apelio II 30 Ton Laser Punch Combo (2004)

Machine frame: Bridge frame
Simultaneous axis speed: 128 m/min
Laser Properties
1500 W/2000 W depending on the oscillator
Laser Punch Model A
Laser type: CO2-Laser
Working range for Laser (X x Y): 2500 x 1270 mm
Model AP3357V
Stability: ± 1.00 %
Duty range: 0 ~ 100%
Stability: ± 1.00 %
Beam divergence: < 2 mm x mrad
Laser source: AC HF excited, fast-flowing
Pulse frequency: Hz
Laser wave length: 10.6 µm
Lasergas consumption: 10 l per hour
Punching properties
Punching force: 200 kN
Working range for punching (X x Y): 1270 x 2500 mm
Tool stations: 58
Punching drive: Hydraulic
Tooling system: Turret magazine
Tool stations that can rotate: 3
Controller
FANUC FS-16LB
Operating system: Embedded
Controlled axes (simultaneously): 3
Length: 5,120 mm
Height: 2,511 mm
Display: 9" Monochrome
Operating system: Embedded
Programming system: ISO / EIA
Width: 5,089 mm
Weight: 16,000 kg
