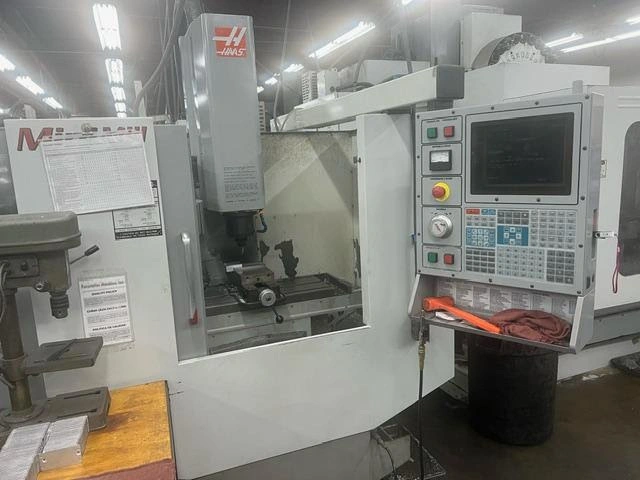

Haas Model Mini Mill CNC Machining Center

• TRAVELS: X-AXIS: 16” Y-AXIS: 12” Z-AXIS: 10”

• TABLE
• LENGTH (TOTAL): 36”
• LENGTH (WORK SURFACE): 28.75”
• WIDTH: 12”
• MAXIMUM WEIGHT ON TABLE: 500 LBS

• SPINDLE
• TAPER SIZE: # 40 TAPER
• SPEED: 0 – 6,000 RPM
•
• SPINDLE MOTOR MAXIMUM RATING: 7.5 HP
• SPINDLE NOSE TO TABLE TOP: 4 – 14”
• FEEDRATES
• RAPIDS: 650 IPM
• CUTTING: 500 IPM
• TOOLCHANGER
• CAPACITY: 10
• TYPE: CT-40
• TOOL DIAMETER: 3.5”
• TOOL WEIGHT: 12 LBS
• GENERAL
• DOOR OPENING WIDTH: 24”
• MACHINE WEIGHT 3,400 LBS
• AIR REQUIRED: 4 SCFM, 100 PSI
• FOOTPRINT: 78” X 80” X 98” H
