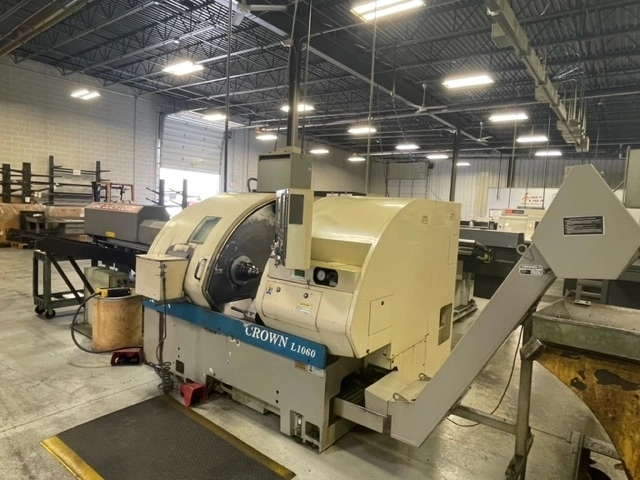

Okuma Model L1060 2-Axis CNC Lathe (2000)
Have one to sell?
ConditionUsed
1 available
Okuma OSP U10L CNC Control
LNS Quick Load Barfeeder
Chip Conveyor
Tailstock
Collet Chuck
Okuma Model L1060 2-Axis CNC Lathe
Nominal Size 10" x 20"
Swing over Saddle 15.75
Max Turning Diameter 10.63"
Max Work Length 20.47"
Spindle Diameter/ Bore Diameter 4.72"/ 3.15"
Spindle Nose A2-8
Internal Taper of Spindle 1/10
Range of Spindle Speed 65-3,500 RPM
Cross-Slide Travel (X-Axis) 7.28"
Longitudinal Travel (Z-Axis) 20.47"
Cutting Feed Rate .0001 to 40.000
Rapid Traverse Speed Z/X 787/590 IPM
Hyd. Tailstock Center Taper MT No. 5
Main Motor 20 HP
Floor Space 104" X 69"
Net Weight 10,000 Lbs
Equipped With
OSP U10L CNC Control
LNS Quick Load Barfeed
Chip Conveyor
Collet Chuck
All Available Manuals
Okuma OSP U10L CNC Control
LNS Quick Load Barfeeder
Chip Conveyor
Tailstock
Collet Chuck
Imperial
| Swing | 21.65" |
| Machining Length | 19.68" |
| Chuck Size | 8" |
| Bar Capacity | 2.2" |
| Power | 18 hp |
| Max RPM | 4,200 RPM |
| Turning Dia | 10.63" |
| Tailstock | Yes |
Okuma Model L1060 2-Axis CNC Lathe
Nominal Size 10" x 20"
Swing over Saddle 15.75
Max Turning Diameter 10.63"
Max Work Length 20.47"
Spindle Diameter/ Bore Diameter 4.72"/ 3.15"
Spindle Nose A2-8
Internal Taper of Spindle 1/10
Range of Spindle Speed 65-3,500 RPM
Cross-Slide Travel (X-Axis) 7.28"
Longitudinal Travel (Z-Axis) 20.47"
Cutting Feed Rate .0001 to 40.000
Rapid Traverse Speed Z/X 787/590 IPM
Hyd. Tailstock Center Taper MT No. 5
Main Motor 20 HP
Floor Space 104" X 69"
Net Weight 10,000 Lbs
Equipped With
OSP U10L CNC Control
LNS Quick Load Barfeed
Chip Conveyor
Collet Chuck
All Available Manuals
