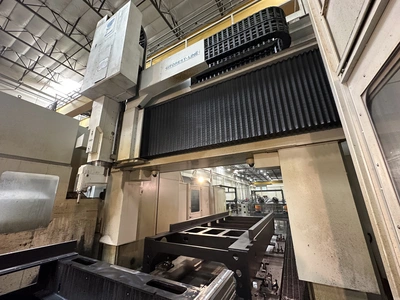

Forest-Line / Five Lines Majormill 350TA 2T CNC Gantry Mill (2011)

Forest-Line / Five Lines Majormill 350ta 2t Cnc Gantry Mill (2011)

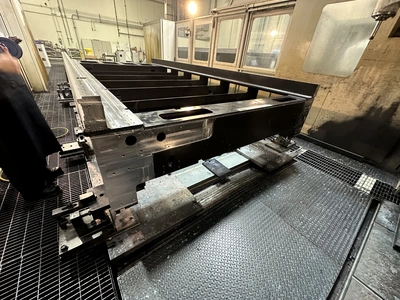

Work Area: 2 Cast Iron Table –
Table Dimensions: 6000 Mm X 2750 Mm (236.22” X 108.27”) –
Maximum Load: 20 Tons (30 Tons Coupled Tables)
Distance Between Uprights: 3500 Mm (137.80”)
Distance Under Milling Spindle: 2600 Mm (102.36”)
Distance Between Table And Under Crossrail: 3000 Mm (118.11”)
Tool Capacity: 120 Tool
Taper: Iso 50 Strokes: --
X-Axis (Double Table): 13300 Mm (523.62”) –
X-Axis (Single Table): 6500 Mm (255.91”) –
Y-Axis: 4000 Mm (157.48”) –
Z-Axis: 1500 Mm (59.06”) –
W-Axis: 1500 Mm (250 Mm Pitch X 6) [59.06” (9.84” Pitch X 6)] –
C-Axis: N X 360 Deg. –
A-Axis: N X 360 Deg. Feed Rates: --
X-Axis: 30 M/Min (1181 Ipm) –
Y-Axis: 40 M/Min (1575 Ipm) –
Z-Axis: 30m/Min (1181 Ipm) –
W-Axis: 1 M/Min (39.37 Ipm)
Milling Head:
-- Type: Fa 315 C –
Section: 425 Mm X 425 Mm (16.73” X 16.73”)
Spindle Attachments:
Vertical Spindle (B8-856-01996b)
-- Type: Bv 40 –
Power: 40 Kw –
Torque: 1530 Nm –
- Max. Spindle Speed: 6000 Rpm
Universal Spindle: (B8-856-01997c)
-- Type: Ru Special
-- Power: 20 Kw
-- Max. Spindle Speed: 2000 Rpm
-- Positioning Increment: 5 Deg.
Right Angle Spindle (B8-856-01995c):
-- Type: Re 40 Long –
Power: 40 Kw Max. S
Spindle Speed: 6000 Rpm
Right Angle Spindle: (B8-856-01998b)
-- Type: Re 15
-- Power: 15 Kw
-- Max. Spindle Speed: 6000 Rpm Machine
Dimensions: -- Metric: 33100 Mm (L) X 10430 (W) X 8045 Mm (H) -- Imperial: 1303.15” (L) X 410.63” (W) X 317” (H) Approximate Machine Weight: 155 Metric Tons
