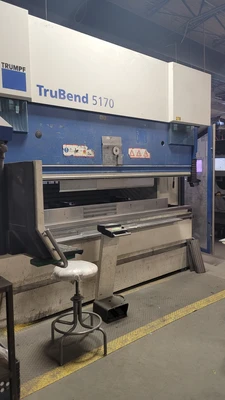

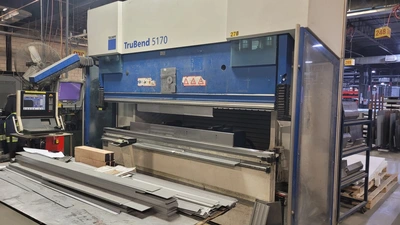

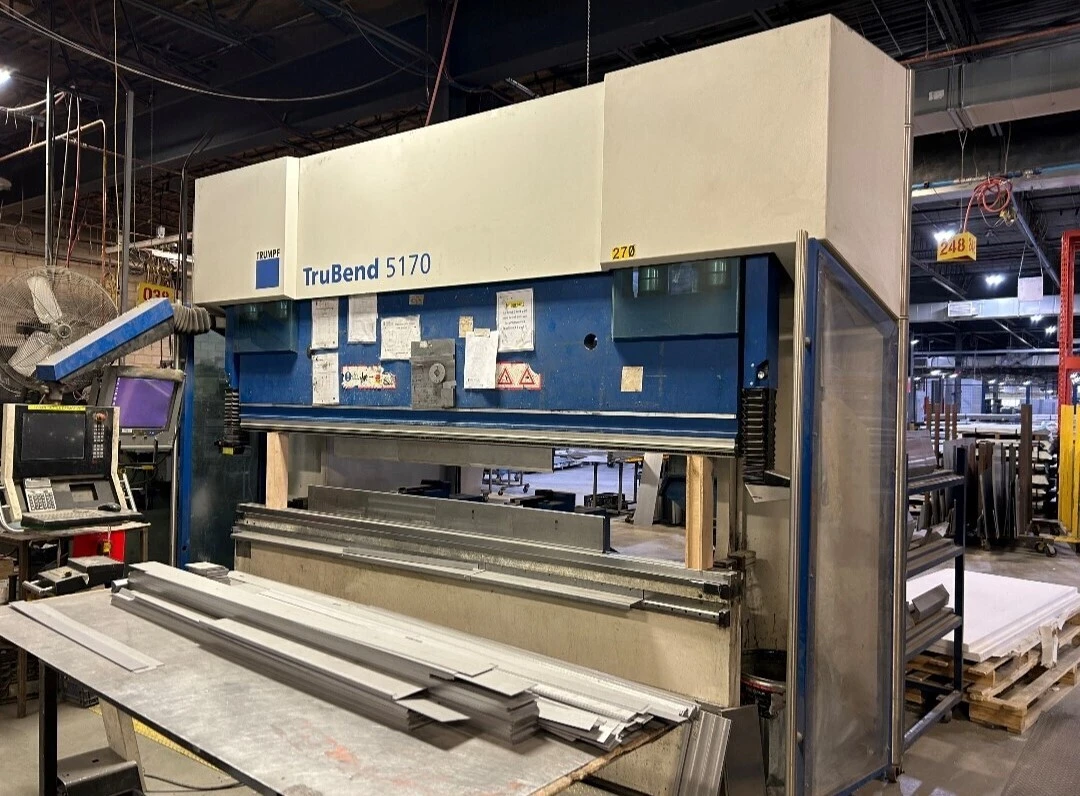

Trumpf TruBend 5170 CNC Hydraulic Press Brake (2008)

Trumpf TruBend 5170 CNC Hydraulic Press Brake (2008)

Press Force 187 Tons
Bending Length 127"
Distance Between Housings 106"
Open Height 24"
Stroke 17.5"
Throat 16.5"
X Axis Travel 24"
X Axis Gauge Depth 34"
R Axis 10"
Y Rapid Speed 520 IPM
Y Bending Speed 24-48 IPM
Y Return Speed 520 IPM
X Axis Speed 590 IPM
Z Axis Speed 2,362 IPM
Y Axis Precision .0002"
X Axis Precision .002"
Electrical Load 32 KVA
Oil Capacity 58 Gal.
Electrics: 440/3/60
Hours
Run Time Hydraulics 14745/ Run Time for Press beam /2954 / Beam Cycles 2687913 / Time On 42463
Run Time for Crowning 70 / Crowning Cycles
Dimensions L 156.0” X W 74.8” X H 118.1”
Weight 26900 Lbs.
