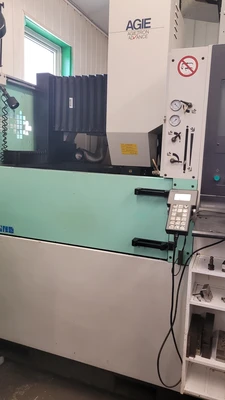

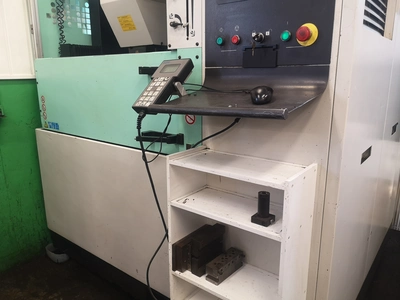

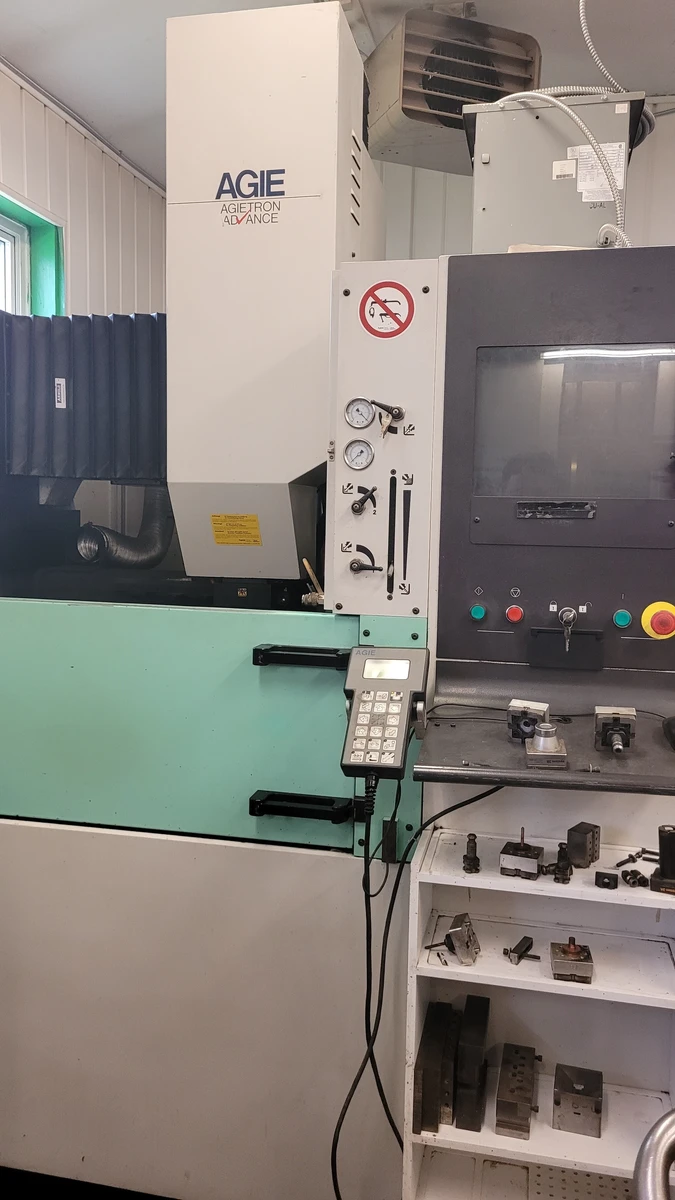

Agie Agietron Advance 3 Sinker Type EDM Electrical Discharge Machine (2005)
Elect Discharge-CNC Wire Type
C Axis, 10 ATC
| Power Pack | 63 A |
| Table Size-W | 19.7" |
| Table Size-L | 27.5" |
| X | 13.3" |
| Y | 9.8" |
| Z | 13.8" |
| Control | CNC (Agie CNC Control) |
Agie AT Agietron Advance 3 Sinker Type EDM Electrical Discharge Machine
Table Dimensions: 31.50″ x 23.62″
Max Workpiece Weight: 2200 LBS
X Axis: 13.80″
Y Axis: 9.80″
Z Axis: 13.80″
C Axis: Yes
AMPS: 63
Main Unit Approx Weight: 8100.00 lbs
Current Electrical Arrangement 400/3/60
Power 12 kVA
AMPS 15/20
Main Unit Dimensions (in inches): Length: 74.00" Width: 77.00" Height: 102.00"
C Axis, 10 Position ATC, Agie CNC Control, CE Mark,
