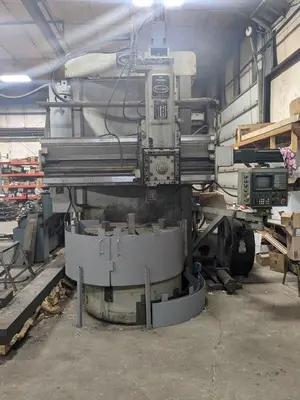

Bullard 46" Dynatrol Adjustable Rail Vertical Turret Lathe

46" Bullard Dynatrol Adjustable Rail Vertical Turret Lathe

Model ............................ 46 Dynatrol
Year ............................. 1971
Table Diameter ................... 46” 4-Jaw Chuck
Maximum Swing .................... 49”
Maximum Swing .................... 58”
Height Under Rail ................ 40”
Rail Adjustment .................. 30”
Table Speeds ..................... (20) 6.83 To 250 Rpm
Feeds............................. .001; To .250; Per/Rev
Vertical Travel Of Turret ........ 26”; Vertical
Turret Travel On Rail ............ Right 31”; ; Left 34-1/2”
Turret Swivel .................... 30 Degrees, Right Or Left
Side Head Travels ................ 38-3/4” Vertical ; 23-3/4” Horizontal
5-Position Turret Head On Rail ... Yes
Equipped With Tda (Thread Cutting, Drum Scoring, Angle Turning)
4-Position Tool Post On Side Head. Yes
Rapid Traverse All Directions .... Yes
Automatic Lubrication ............ Yes
Motor ............................ 50 Horsepower
Current Electrical Arrangement 444/3/60
