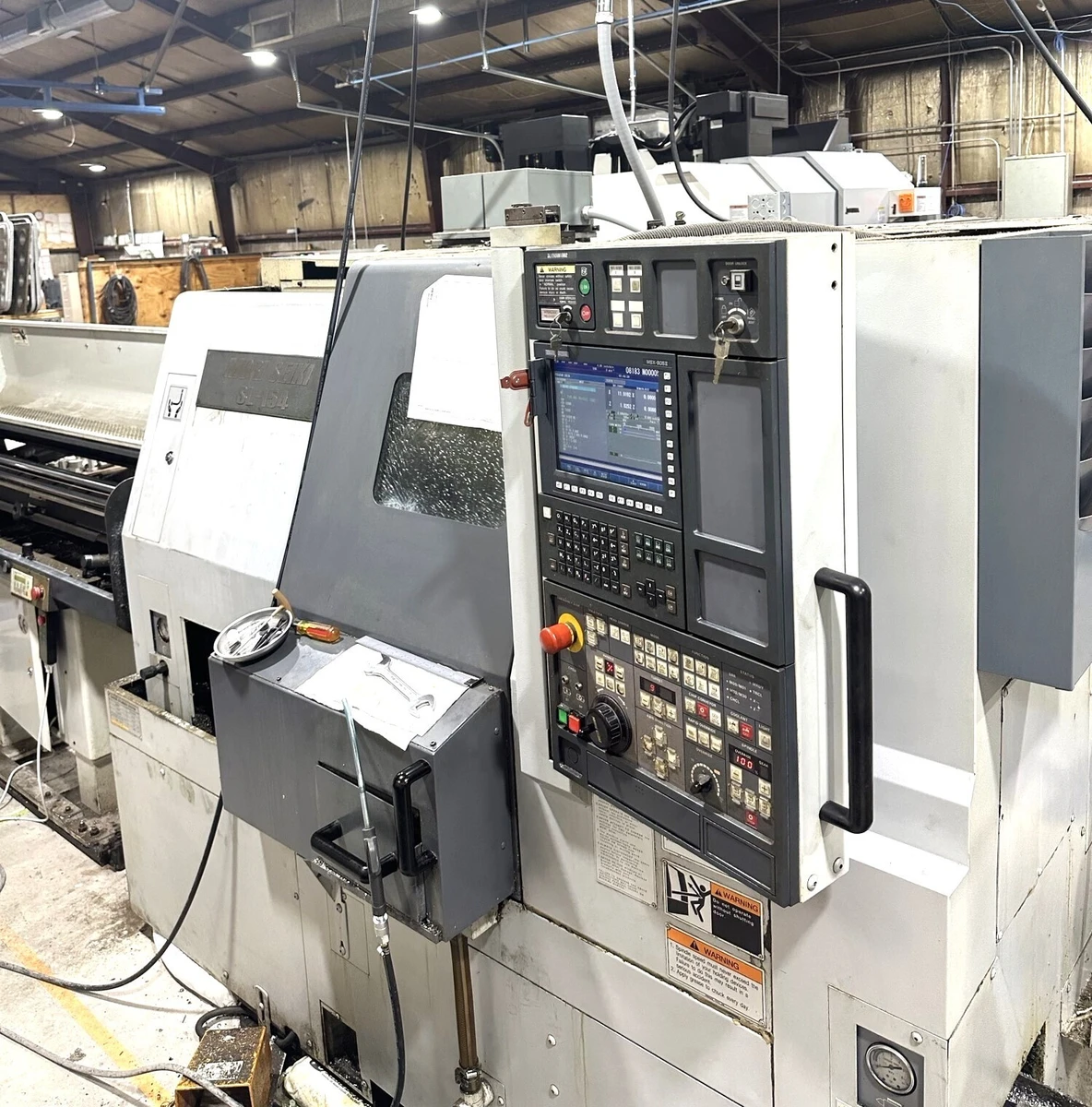

Mori Seiki SL-154/500 CNC Lathe (2002)
Lathes CNC
Collet Chuck, MSX805-III CNC, Barfeed, Tailstock, Parts Catcher, Collet Chuck
| size | 8" Chuck |
| Swing | 26.8" |
| Machining Length | 22.8" |
| # Axis | 2 |
| Chuck Size | 8" |
| Bar Capacity | 1.625" |
| Power | 15 hp |
| Max RPM | 6,000 RPM |
| Turning Dia | 16.9" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (MSX805-III CNC) |
Mori Seiki SL-154/500 CNC Lathe (2002)
Swing Over Bed 26.8"
Swing Over Corss Slide 20.1"
Distance Between Centers 22.8"
Travels: X-Axis 8.5"
Z-Axis 19.3"
Maximum Turning Diameter 11.8"
Maximum Turning Length 19.7"
Turret Positions 12
Spindle: Speed 5,000 RPM
Nose A2-5
Motor 10 HP
MSX805-III CNC
Barfeed
Tailstock
Parts Catcher
