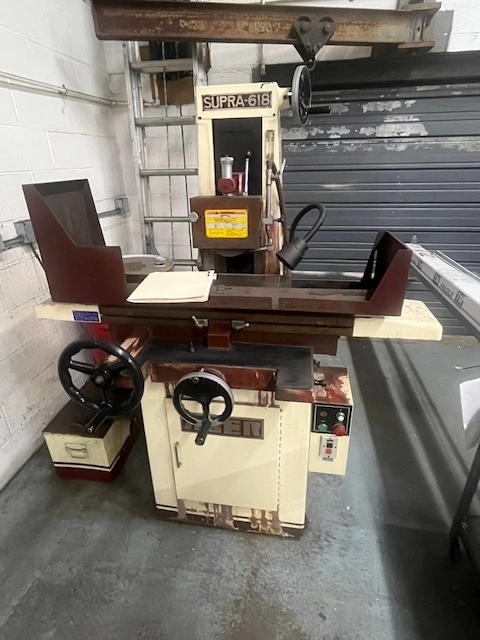

Acer Supra-618 Surface Grinder (1999)
Grinder-Hydraulic Horz Surface
| Table-W | 6" |
| Table-L | 18" |
| Horz/Vert | Horz |
| Power | 2 hp |
| Grinding Wheel Width | 1" |
| Grinding Wheel Dia. | 8" |
Acer Supra-618 Surface Grinder (1999)
Table Size 6″ x 18″
Longitudinal Travel 20″
Cross Feed Travel 7-1/2″
Spindle Center to Table 19-5/16″
Spindle Motor 3HP (V3)
Grinding Wheel 8″ x 1/2″ x 1-1/4″
Spindle Speed 3,450 RPM
Vertical Graduation 0.0001″ (Direct Dial)
T-Slot 1″ x 3/8″
Machine Weight 1,584 Lbs
Elevating Handwheel at Base of the Machine
Ball Rolling Table; Belt Drive
Auto Lubricator; High Tensile Meehanite Casting
Cast Iron Base: Double V “Turcite-B” Crossfeed Way
Indexible Table Handwheel; Waist-side Downfeed Mechanism
CE Standard Electric
Working Capacity: 6” x 18”
