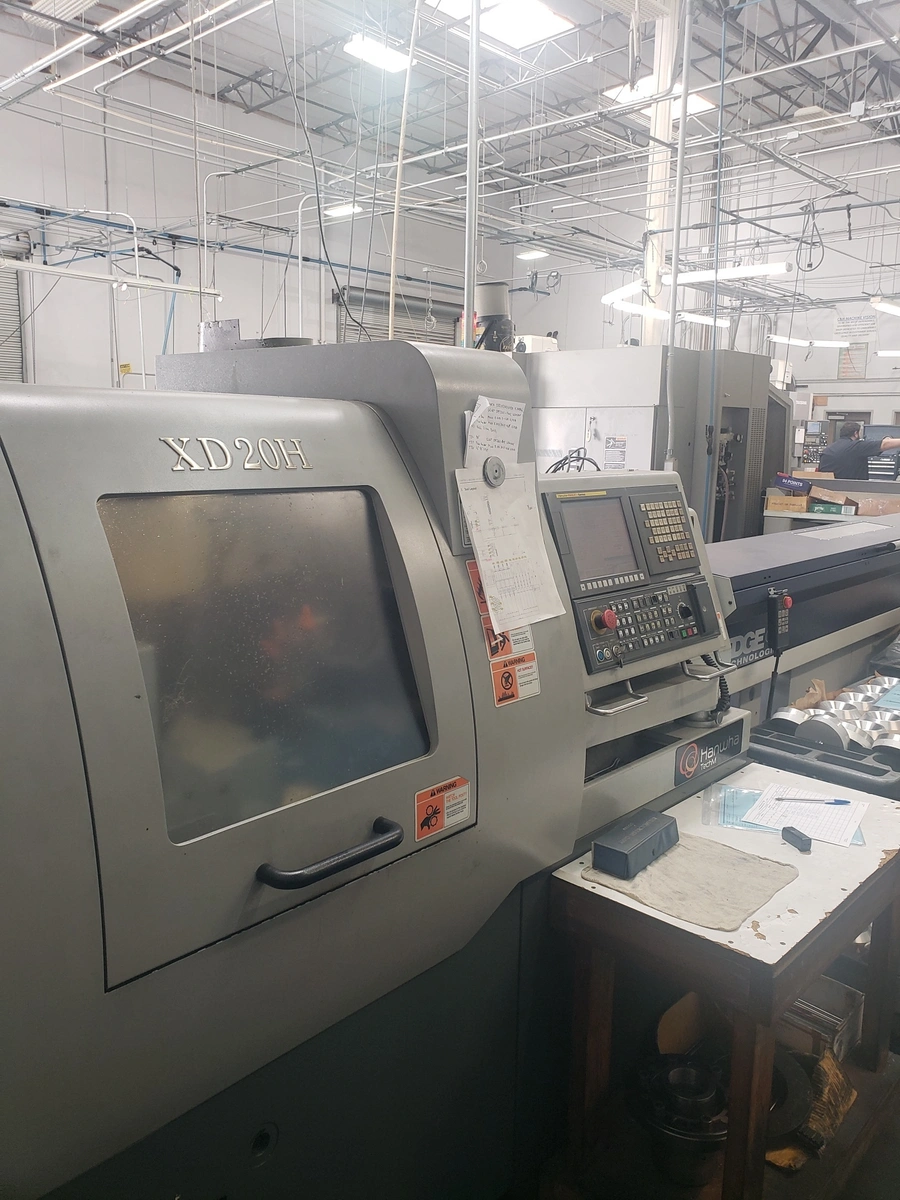

Hanwha XD-20H CNC Swiss Type Automatic Lathe (2010)

Hanwha XD-20H CNC Swiss Type Automatic Lathe (2010)

Maximum Capacity 0.787″
Maximum Machining Length 8.267”/210mm
Tool Capacity
6 Turning (OD) Static
5 Front Working Static Drill Holding Tree (ID) (Main/Sub)
4 Cross Driven Tools (8,000 RPM)
2 Sub Facing Static drill holding
2 Sub Facing Live
2 Sub Spindle Additional Drill Holding
Spindle Speed 10,000 RPM
Spindle Indexing C-Axis Live (Main/Sub)
Maximum Drill Diameter 0.396″
Main Motor 5 HP
Sub-Spindle Speed 8,000 RPM
Maximum Drill Diameter 0.2″
Sub-Spindle Motor 3 HP
