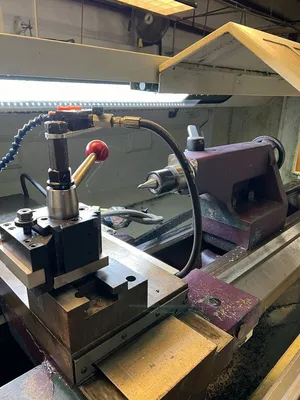

Bridgeport EZ Path IISD 20" x 60" CNC Lathe (2000)

Bridgeport Romi EZ-Path IISD CNC Flat Bed Lathe

Spindle Bore Diameter: 2.56"
Swing Over Bed, Maximum: 20"
Distance Between Centers, Maximum: 60"
Swing Over Cross Slide, Maximum: 10.0"
Tailstock Quill Travel: 6.3"
Tailstock Quill Diameter: 2"
Tailstock Quill Taper: #4 MT
Spindle Speeds, Range: 4 to 3,500 RPM
Rapid Traverse Rate, X-Axis: 250 IPM
Rapid Traverse Rate, Z-Axis: 250 IPM
Spindle Motor, Horsepower: 8 HP
Width Of Bed .......................... 13.5"
Height Of Bed ......................... 12.5"
Tailstock Quill Travel................. 5.11"
Tailstock Quill Diameter............... 3.15"
Tailstock Taper........................ #4mt
Floor Space Required................... 60" X 107"
Approximate Weight..................... 6,750 Lbs.
