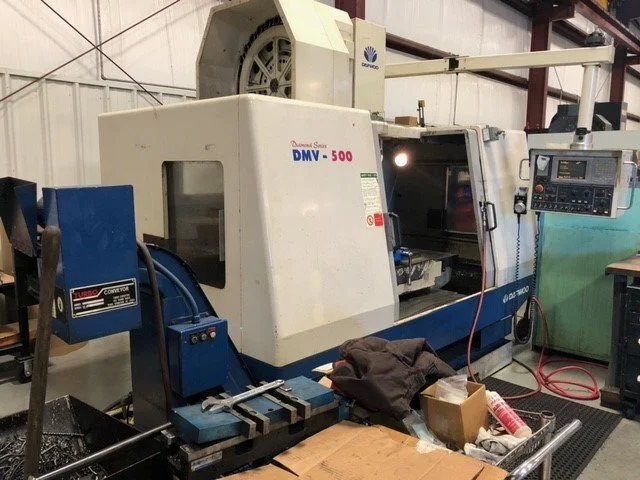

Daewoo DMV500 Diamond Series Vertical Machining Center (1999)
Machining Centers, Vertical
40" x 20" x 20", 40 Taper, Mitsubishi Control
| size | 40" x 20" x 20" |
| X Travel | 40.15" |
| Y Travel | 19.68" |
| Z Travel | 20.07" |
| Power | 25 hp |
| RPM | 8,000 RPM |
| # ATC | 30 |
| Table-W | 47.24" |
| Table-L | 19.68" |
Daewoo DMV500 Diamond Series Vertical Machining Center (1999)
Table Size: 47.24″ x 19.68″
Max Weight on Table: 1800 Lbs.
X Axis Travel: 40.15″
Y Axis Travel: 19.68″
Z Axis Travel: 20.07″
Spindle Speed: 10,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 20/25 HP
ATC: 30
Coolant Thru Spindle
Mitsubishi Control
Chip Conveyor
