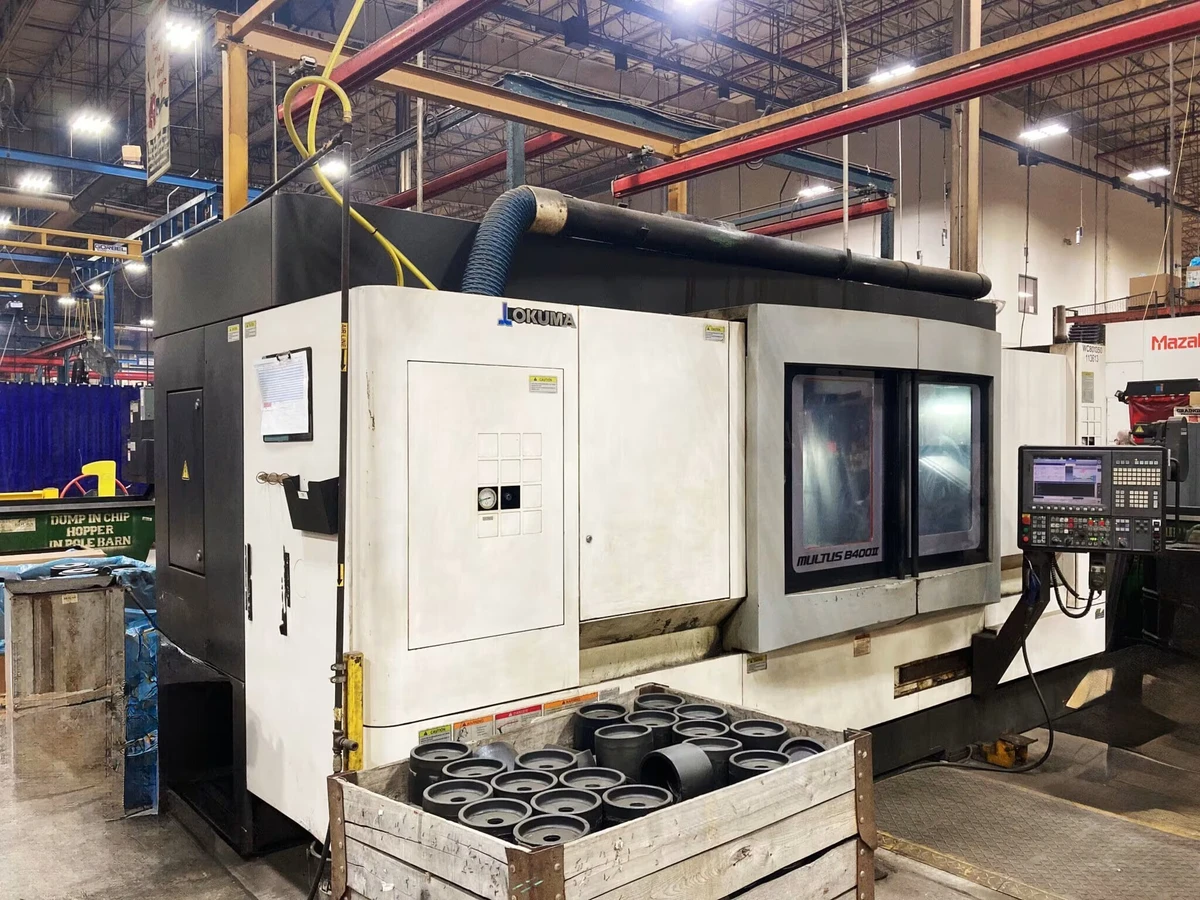

Okuma Multus B400IIW Multifunction CNC Turning Center W/Universal Head, Sub Spindle, Live Tooling & Y-Axis (2012)
Lathes CNC 5 Axis or More
.jpg)
.jpg)
Live Tool, Articulating Universal Milling Head Sub Spindle, Okuma OSP P300S CNC Control,
Hi-Cut Pro,
Hi-G Control,
Admac 3D Virtual Monitor,
Full Contouring B-Axis Universal Head,
Lathe Tool Indexing,
15" Kitagawa B-15 15" 3-Jaw Power Chuck on main spindle and sub-spindle,
| # Axis | 5 |
| Swing | 27.9" |
| Machining Length | 60" |
| Chuck Size | 15" |
| Bar Capacity | 4.33" |
| Power | 40 hp |
| Max RPM | 3,800 RPM |
| Control | CNC (Okuma OSP P300S) |
Okuma Multus B400ii-W Big Bore Cnc Turning Center W/Universal Head, Sub Spindle, Live Tooling & Y-Axis
Okuma OSP P300S CNC Control,
Hi-Cut Pro,
Hi-G Control,
Admac 3D Virtual Monitor,
Full Contouring B-Axis Universal Head,
Lathe Tool Indexing,
15" Kitagawa B-15 15" 3-Jaw Power Chuck on main spindle and sub-spindle,
Max Swing Over Saddle 27.95"
Max Machining Diameter 27.95"
Main Spindle Chuck Size 15" Kitagawa B-15 15" 3-Jaw Power Chuck
Sub Spindle Chuck Size 15" Kitagawa B-15 15" 3-Jaw Power Chuck
Max Working Distance Between Spindles 59.06"
X-Axis (Cross Travel) 27.17"
Z-Axis (Longitudinal Travel) 60.83"
Y-Axis Travel 9.02"
B-Axis (Rotation of Universal Head) 225°
C-Axis (Indexing Positions of Main Spindle) .001°
Spindle Bore 4.33"
Spindle Nose A2-11
Spindle Horsepower 40 HP
Spindle Speed Range 38 - 3,800 RPM
80 Station Capto C6 ATC Capacity,
Live Tooling Horsepower 14 HP
Live Tooling Speed Range 90 - 6,000 RPM
225° B-axis range,
0.001° with 6,000 rpm,
Chip Blaster 1,000 PSI Coolant Though Spindle,
Touch Setter,
Touch Sensor,
H1 Turret,
Elevated Chip Conveyor,
2- Tooling Carts with Tooling
5 components for shipping the Multus.
Below are the LXWXH for each:
Machine – 193”X9’X9’
Chip conveyor – 200”X49 1/2”X6’
Chip Blaster – 25 ½”X 54”X 80”
Spindle Chiller – 40 ½”X14 ¼”X39”
Oil Cooler – 17 ¾” X 17”X39”
Weight 34,000lbs
