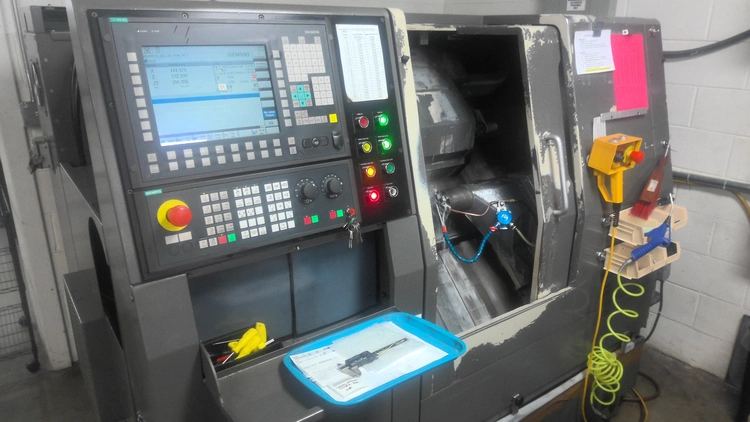

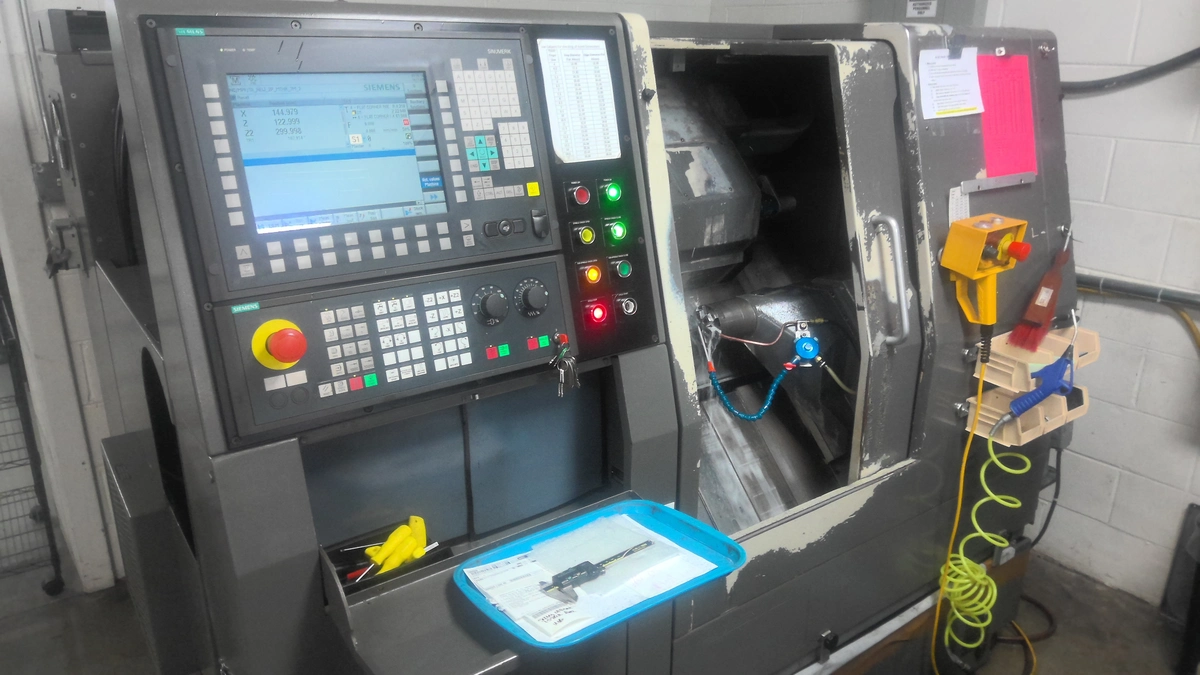

Hardinge Conquest 42SP Super Precision CNC Lathe with Subspindle
Have one to sell?
ConditionUsed
1 available
Siemens Control, Sub Spindle, Collet Chuck
Hardinge Conquest 42SP Super Precision CNC Lathe
Max. Swing Over Upper Way Cover 19.5"
Max. Swing Over Lower Way Cover 14.5"
Max. Distance Between Centers 21.4"
Max. Turning Dia. / Length 10.8" / 14.5"
X Axis Travel 5.45"
Z Axis Travel 13.65"
Rapid Traverse Rate X / Z Axes 472 / 630 Ipm
Spindle Bore / Bar Capacity 1.875" / 1.625"
Spindle Nose A2-5
Spindle Speeds 50 - 5,000 Rpm
Spindle Motor 10 Hp
Turret Capacity 10 Station
Tailstock Travel / Taper 11.5" / Mt #3
Machine Dimensions (Approximate) 122" X 54" X 68"
Machine Weight (Approximate) 9,000 Lbs
Siemens Control, Sub Spindle, Collet Chuck
The machine control and motors updated in 2013
The control was changed from Faunc to Siemens.
Spindle motors and axis drive motors were changed.
The subspindle linear movement was changed from Hydraulic to a ball screw system.
Shop Turn user interface system
