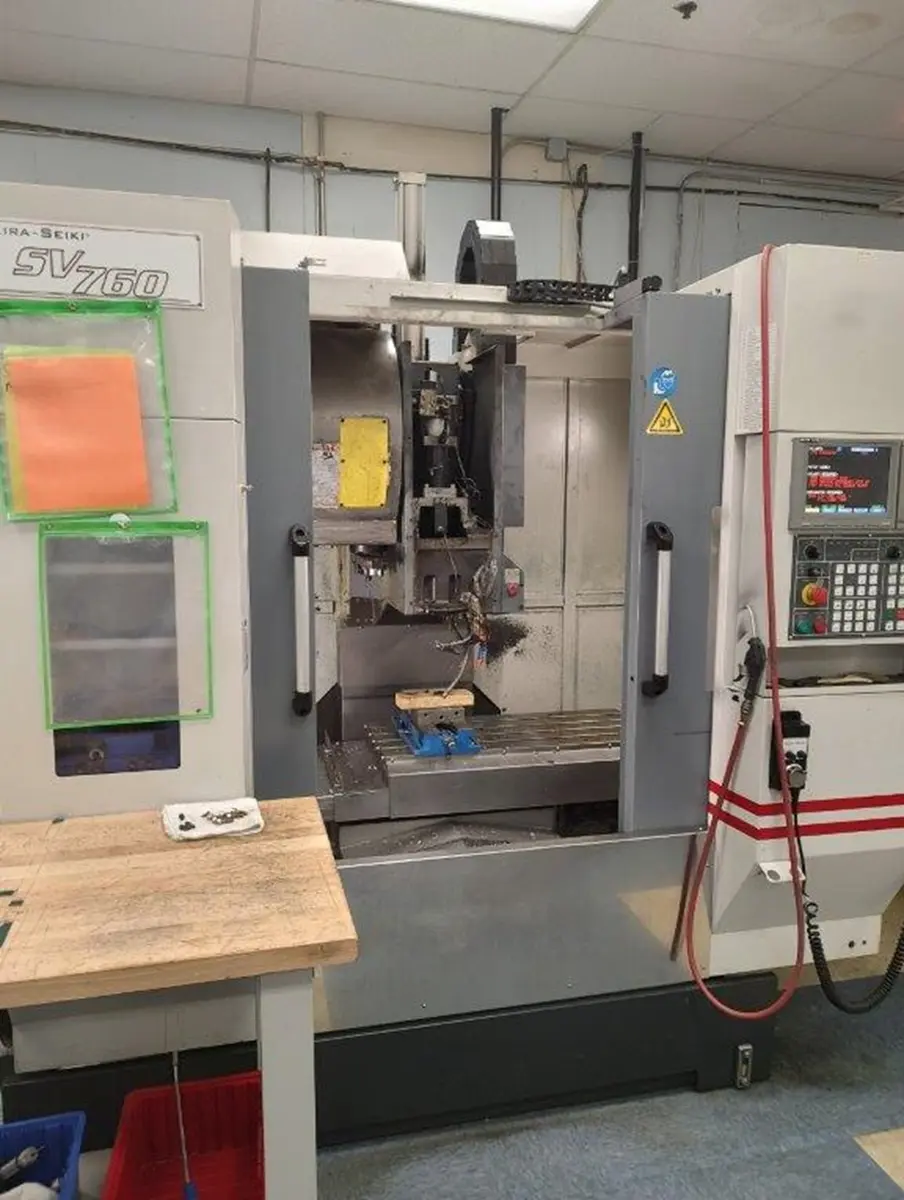

Akira Seiki SV760 Vertical Machining Center (2014)

Akira Seiki SV760 Vertical Machining Center (2011)

TRAVEL
X Axis Travel mm / inch 550 / 21.7 760 / 30
Y Axis Travel mm / inch 445 / 17.5 445 / 17.5
Z Axis Travel mm / inch 520 / 20.5 520 / 20.5
Spindle Nose to Table Surface mm / inch 75~595 / 3~23.4 75~595 / 3~23.4
Spindle Center to Column Cover mm / inch 460 / 18 460 / 18
TABLE
Table Size (L x W) mm / inch 700 x 400 /
27.6 x 15.8 910 x 400 /
35.8 x 15.8
T Slot mm / inch 18 x 80 x 4 slots /
0.7 x 3.15 x 4 slots 18 x 80 x 4 slots /
0.7 x 3.15 x 4 slots
Max. Loading kgs 720 / 1588 960 / 2117
Standard Loading kgs 600 / 1323 800 / 1764
SPINDLE
Max. Power (Peak) HP 25 25
Max. Speed RPM 15,000 15,000
Spindle Taper BT40 BT40
Method of Spindle Chilling - Oil chilling Oil chilling
FEED
Rapid Feed X / Y / Z M / min
Ipm 48 / 48 / 36
1890 / 1890 / 1417 48 / 48 / 36
1890 / 1890 / 1417
Cutting Feed X / Y / Z M / min
lpm 24 / 24 / 24
945 / 945 / 945 24 / 24 / 24
945 / 945 / 945
ACCURACY
Positioning mm / inch 0.01 / 0.00039 0.01 / 0.00039
Repeatability mm / inch ±0.003 / ±0.00012 ±0.003 / ±0.00012
ATC(Arm Type)
Max. Tool Storage - 28T 28T
Max. Tool Diameter mm / inch 65 / 2.6 65 / 2.6
Max. Tool Diameter
(w/o Neighbor Tool) mm / inch 130 / 5.1 130 / 5.1
Max. Tool Length mm / inch 250 / 9.8 250 / 9.8
Max. Tool Weight kgs 7 / 15.4 7 / 15.4
Tool Change Time (T to T, 60hz) sec. 1.9 1.9
OTHERS
Coolant Tank Capacity liter / gal 250 / 66 250 / 66
Chip Disposal - Chain Type
Chip Conveyor Chain Type
Chip Conveyor
Air Pressure Requirement Mpa / psi 0.5 / 72.5 0.5 / 72.5
Power Requirement kVA 20 20
Dimensions (W x D) mm / inch 2845 x 2200 /
112 x 87 3145 x 2200 /
124 x 87
Weight kgs 4099 5189
