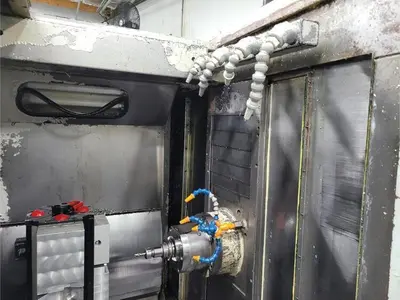

Mazak HTC-400 Horizontal Machining Center (1998)

Features and Specifications:
Mazatrol M Plus Control
Pallet Size: 16" x 16"
Pallet Indexing: 360° @ 1° Increments

Travels:
X-Axis: 22"
Y-Axis: 20"
Z-Axis: 20"
Spindle Speed: 10,000 RPM
Spindle Taper: CT 40
ATC: 30 Slots, Vertical Orientation

Tool Specifications:
Max. Length: 14.96"
Max. Ø: 3.74" w/ Adjacent Tools
Max. Ø: 4.5" w/ Adjacent Pockets Empty
Max. Weight: 17.6 lbs.

Workpiece Specifications:
Max. Work Ø: 22"
Max. Height: 24.8"
Max. Mass: 661.2 lbs.

Overall Equipment Dimensions (approx.): 144" x 84" x 80" (n/i conveyor)
Overall Equipment Weight (approx.): 14,100 lbs.
