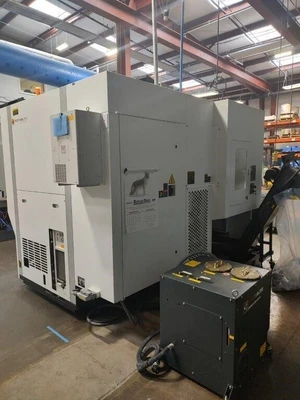

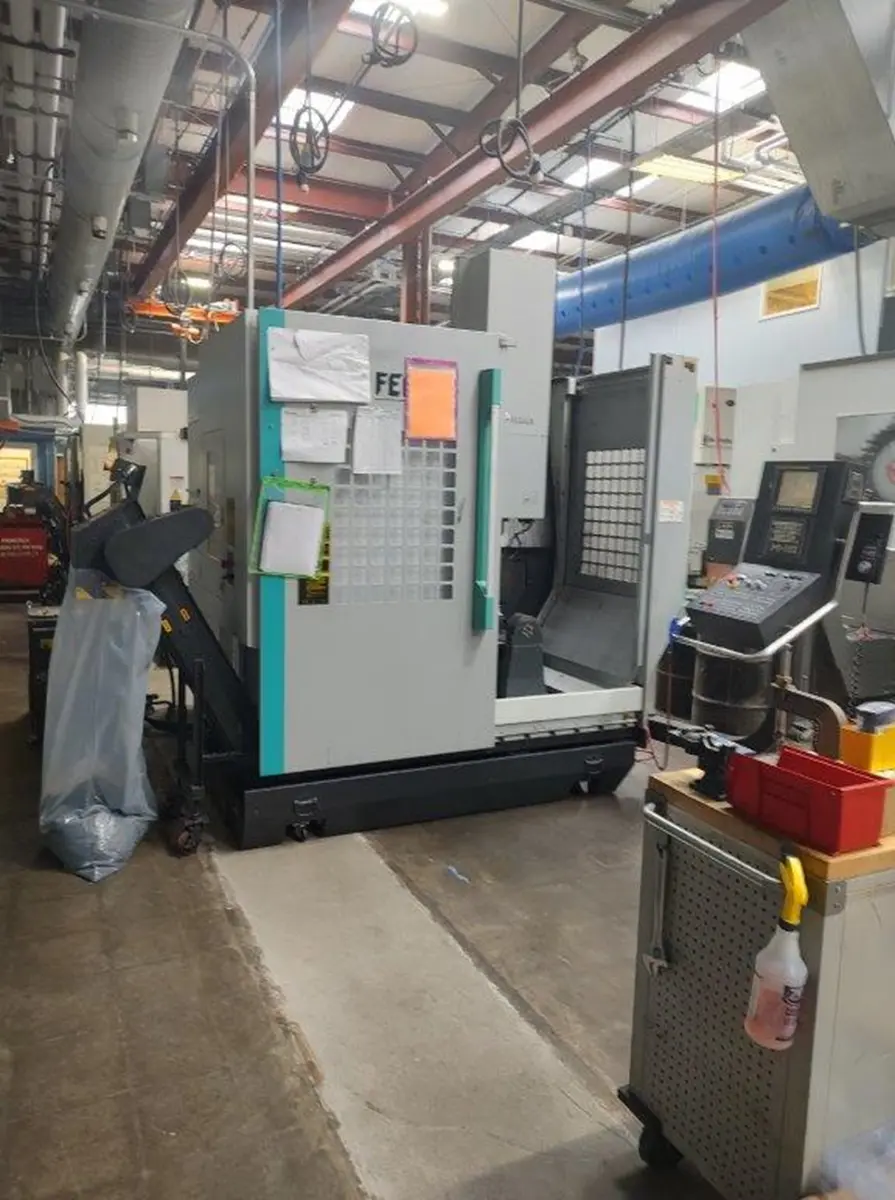

Feeler U-600 5 Axis Machining Center (2016)
Have one to sell?
ConditionUsed
1 available
5 Axis, 10000 RMP, 40 Taper,
FEELER U600
Intelligent Machining Function
The U-600 employs anti-chatter technology of “Chatter Lobe” program, which predicts and prevents occurrence of chatter during machining. Users need to simply input parameters into Chatter Lobe, and then possible chatter and corresponding adjustment of cutting conditions will be provided.
5-axis Machining Feature: (Patent: M437221)
Different from general BC-type, the U-600 is designed as AC type for extensive machining capacity that allows workpiece diameter larger than axis travel. Additionally, such configuration is in favor for view and access.
Wide Operation Area (Patent: M436520)
The operation area is defined with 2 sliding doors with wide open space. The user is allowed to operate from 2 directions for easy operation and clear monitoring on the workpiece. This design is also in favor for loading/unloading, featuring excellent access.
One-piece Base-Column
The base and column are structured as one-piece casting, which eliminates possible tolerance of the jointing interfaces. The tool magazine is directed mounted onto this one-piece structure so that torque twist is decreased and stability increased. Box-structure casting and optimal span realize exceptional rigidity and stability. Large hole on the back offers convenience for assembling and maintenance.
3 Overlapped Axes with 2 Rotating Axes
Axes of linear movement and rotation are separated so that during 5-axis machining, curve tolerance or error can be controlled and adjusted rather easily.
Feeler U-600 5 Axis Machining Center (2016)
A/C axes Tilting Rotary Table Worm shaft and gear
TRAVEL
X-axis Travel mm 460
Y-axis Travel mm 520
Z-axis Travel mm 400
A-Axis rotation angle degree +40°~ -100°
C-Axis rotation angle degree 360°
Spindle nose to table surface mm 150±5 ~ 550±5
Table surface to floor mm 750±5
TABLE
Table dimension mm Ø600
Spindle hole diameter Ø60H7
T-slot mm 5x14
Max. table load kg 250
Working Torque N-m A axis (Tilting axis) 2520
C axis (Rotary axis) 672
Max. rotation speed
A axis (Tilting Axis) minˉ¹ 25
Max. rotation speed
c axis (Rotary Axis) minˉ¹ 25
Min. indexing unit degree ±5"
SPINDLE
Spindle Speed minˉ¹ Direct drive type 10000 rpm (OPT 12000 / 15000 / 18000 rpm)
(Built-in type 24000 rpm)
Spindle taper 7/24 Taper No.40
Spindle power kW 7.5/11
FEEDRATE
X axis rapid traverse m/min 30
Y axis rapid traverse m/min 30
Z axis rapid traverse m/min 30
AUTOMATIC TOOL CHANGER
Tool changing time (tool-to-tool) sec 7
Tool changer Arm type
No. of Tools 24 (OPT30 - 40 -60)
Pull stud P-40T(45°)
Max. tool weight kg 7
Max. tool length mm 280
Max. tool diameter mm Ø80
Max. tool diameter (no adjacent tool) mm Ø150
OTHERS
Floor space mm 3850(W)x2350(D)
INE Weight kg 8145
Max. machine height mm 3000
Power capacity KVA 35
Air source bar 6-8
