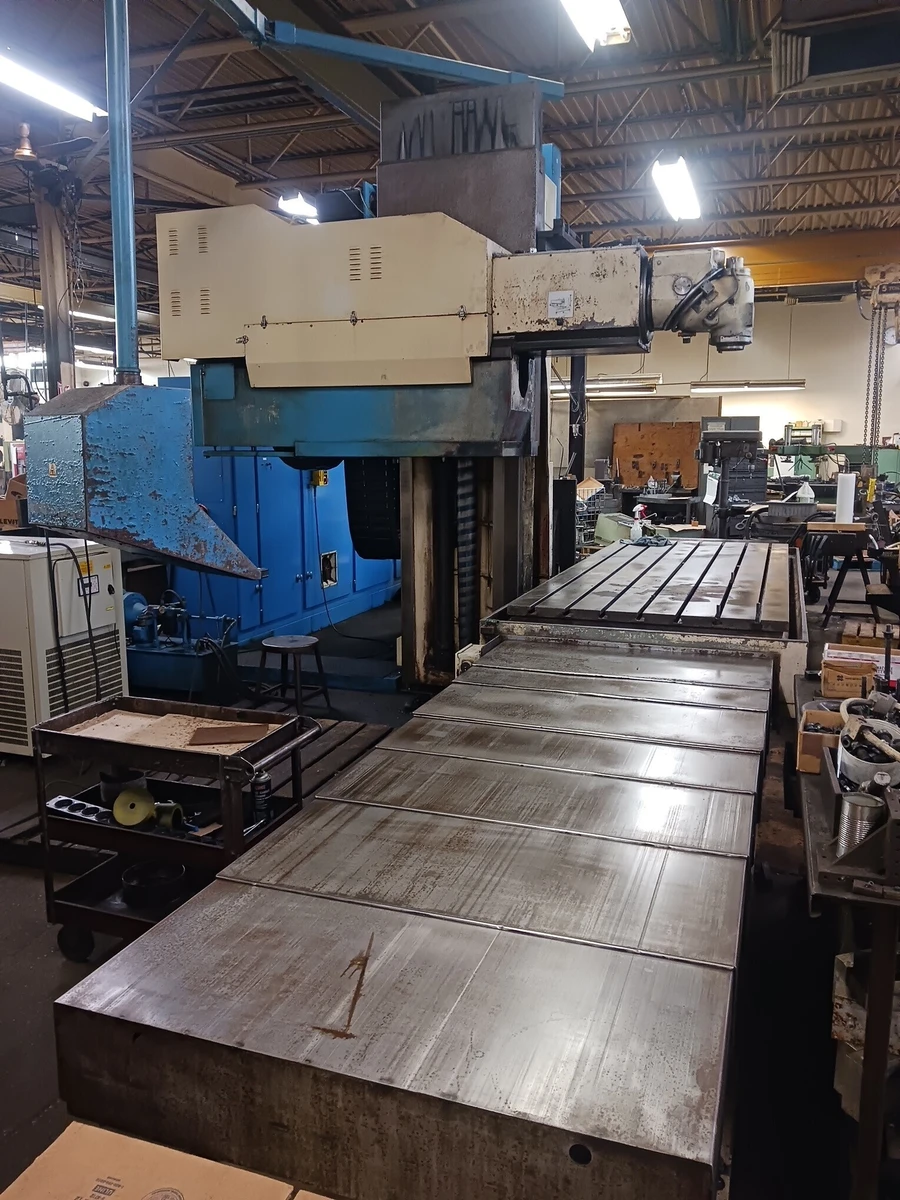

Asquith Butler TE3000 5 Axis CNC Vertical Bed Mill (1995)
Machining Centers, 5 Axis
118" x 41" x 66" , Articulating Universal Milling Head, Heidenhain 415 CNC Control W/ RS-232
| X | 188.4" |
| Y | 41.34" |
| Z | 66" |
| # Axis | 4 |
| RPM | 3,000 RPM |
| # ATC | 60 |
| Taper | 50 |
Asquith Butler TE3000 4 Axis CNC Vertical Bed Mill (1995)
Table Size 47.24 x 122.05" / 1200mm x 3100mm
Table Horizontal Traverse 118.1" / 3000mm
Ram Horizontal Traverse 41.34" / 1050mm
Ram Vertical Traverse 66" 1378mm
Indexing Head C-Axis 4 x 90 degrees
Spindle Cartridge D-Axis 2 x 180 degrees Power 50 HP
Spindle Speed 10 - 3000 rpm
Feeds 1- 5000 mm/min
Table Load Capacity 20000 lbs / 10 Ton
Foot Print (including electrical cabinet) 336” x x 181" x 144”H
42" diameter 4th axis
Articulating Universal Milling Head, Heidenhain 415 CNC Control W/ RS-232
5 Position auto indexing milling head
60 station auto tool changer
Offering 3-dimensional profiling
Circular interpolation, drilling, tapping and thread milling.
