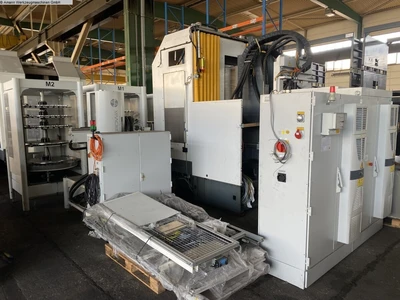

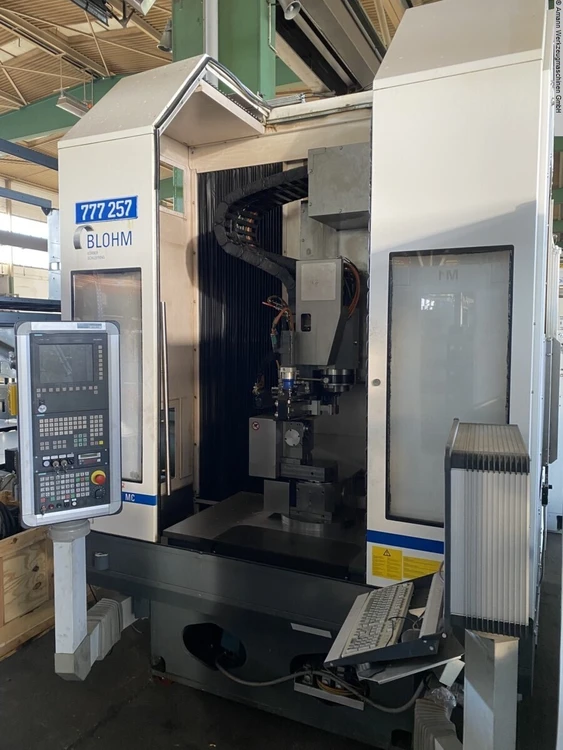

Blohm 607 MC 5 Axis Profile Grinder (2010)
Profile Grinders
5 Axis, (3) Machines Available
| Table-W | 600 mm |
| Table-L | 700 mm |
| Wheel-Dia. | 300 mm |
| Wheel-W | 200 mm |
| Wheel-Bore | 127 mm |
| Power | 35 kW |
| RPM | 12,000 RPM |
| Control | CNC (SINUMERIK 840 D) |
Blohm 607 MC 5 Axis Profile Grinder (2010)
Grinding Length 1025 Mm
Grinding Width 520 Mm
Workpiece Height - Mm
Control SINUMERIK 840 D
Tool Taper HSK-A 63
A - Axis + 110 / - 5 °
Workpiece Weight 30 Kg
Distance Grinding Spindle - Table Min./Max. 473,5 - 1023,5 Mm
X-Axis 520 Mm
Y-Axis 550 Mm
Z-Axis 1000 Mm
V-Axis 166 Mm
Feed X-Axis 4 - 6.000 Mm/Min
Feed Y- Axis 4 - 4.000 Mm/Min
Feed Z- Axis 30 - 25.000 Mm / Min.
Table Dimensions 1.400 X 874 Mm
Spindle Speeds (Infinitely Variable) 0 - 12.000 U/Min
Power Capacity - Grinding Motor 35,00 Kw
Grinding Wheel Diam. Min/Max. 60 / 300
Grinding Wheel Width 20 Mm
Total Power Requirement 192,00 Kw
Weight Of The Machine Ca. 11,00 T
Dimensions Of The Machine Ca. 8,60 X 7,25 X H3,80
5 Axis Profile Grinding Machine, With SIEMENS SIN840D,
Double Dividing Head (B-C Axis), V-Axis (Coolant Nozzles),
EROWA Tool Changing Device (Machine Can Also Be Operated Without
A Tool Changer), Fire Extinguishing Device,
Renishaw Probe Prepared
Without Coolant Device - Was Connected To The Central Supply.
Origin: Deutschland
