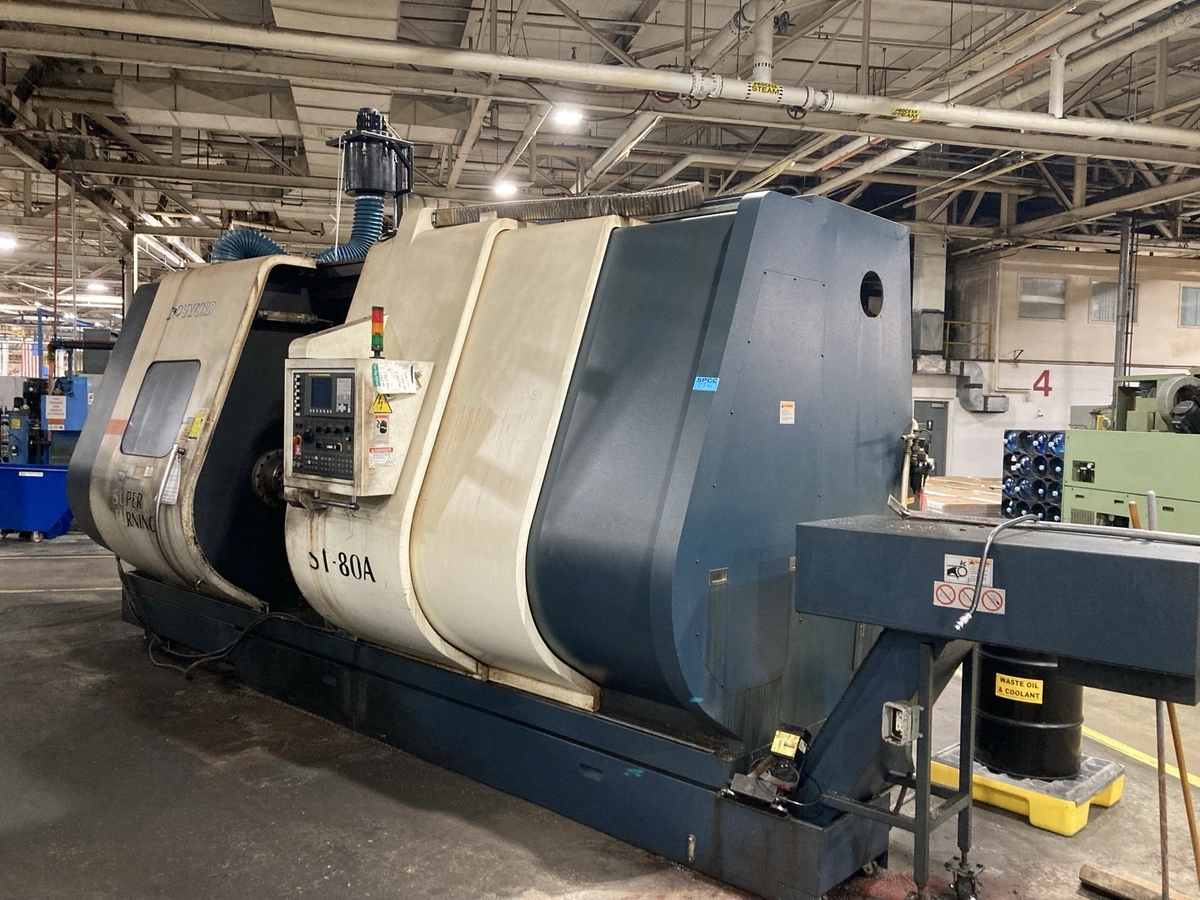

Johnford ST-80A 2 Axis CNC Lathe (2005)

Johnford ST-80A 2 Axis CNCN Lathe (2005)

Standard turning diameter 27.5"
Swing over carriage 27.5"
Maximum cross travel (X axis) 15.7"
Maximum longitudinal travel (Z axis) 78.7"
Distance between centers 88.5”
Spindle:
Spindle Motor 35 HP
Spindle nose A2-11
Spindle RPM 0-3000 (12” Chuck)
Hole through spindle 4.5"
Bar Capacity 4.1”
Spindle bearing diameter 6.3"
Spindle inside taper M.T. 7
Hydraulic chuck 12” 3-Jaw
Turret:
Turret tool positions 12

Tailstock:
Quill diameter of tailstock 7.87"
Quill stroke of tailstock 5.9"
Quill taper of tailstock M.T. 7
Tailstock body travel 66.9”
