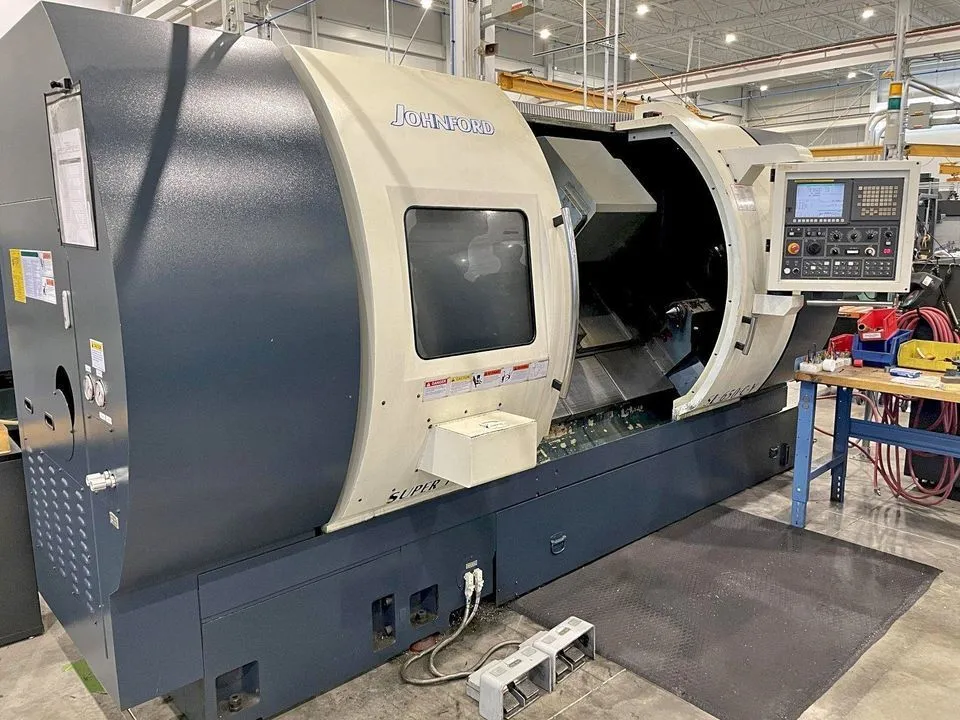

Johnford SL Super 650 Y+C CNC Lathe with Live Tool and Y Axis (2013)

Johnford SL Super 650 Y+C CNC Lathe with Live Tool and Y Axis (2013)

New 2013, Serial No TEQ130045, Model SL650+C+Y,

EQUIPPED WITH:

Fanuc Oi-TD CNC Control

C-Axis w/Live Tooling

Y-Axis Functionality

Collet Chuck - 10" 3-Jaw Chuck - Steady Rest

12-Position VSI Live Tooling Turret w/Tooling Shown

45-Degree Slant Bed Design

#A2-8 Spindle Nose

Hydraulic Programmable Tailstock

Chip Conveyor

Renishaw Probe

CATALOG SPECIFICATIONS:

Bar Capacity 3"

Swing Over Bed 22.8”

Swing Over Cross-Slide 17.7"

Distance Between Centers 60”

Cross Travel, X-Axis 9.8"

Longitudinal Travel, Z-Axis 55.1"

C-Axis Indexing 0.001-DEGREES

Spindle Speeds, Maximum 0 to 3500 RPM

Live Tooling Speed 3800 RPM

Rapid Traverse Rate, X Axis .......... 590 IPM

Rapid Traverse Rate, Z-Axis .......... 708 IPM

Main Motor Horsepower 25 HP

Live Tooling Motor Horsepower 7.5 HP

Floor Space Required, L x W x H 208" x 89" x 86"

Weight Approximately .......... 20000 Lbs.
