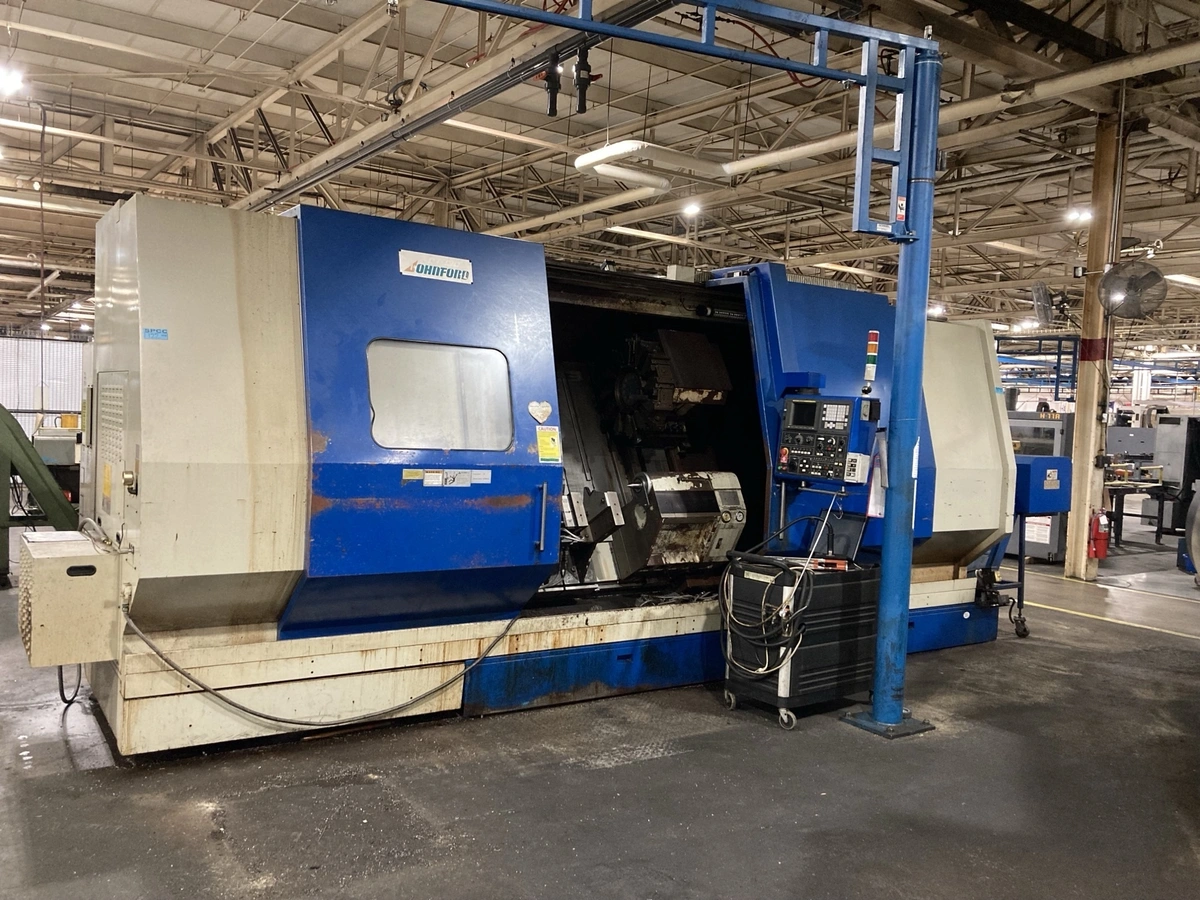

Johnford ST-130A 2 Axis CNC Slant Bed Lathe (2002)

Johnford ST-130A 2 Axis CNC Slant Bed Lathe (2002)

Swing over bed/Front cover 36.2"
Standard turning diameter 27.5"
Swing over carriage 27.5"
Maximum cross travel (X axis) 15.7"
Maximum longitudinal travel (Z axis) 120"
Distance between centers 130”

Spindle:
Spindle Motor 50 HP
Spindle nose A2-11
Spindle RPM 0-3000 (12” Chuck)
Hole through spindle 4.5"
Bar Capacity 4.1”
Spindle bearing diameter 6.3"
Spindle inside taper M.T. 7
Hydraulic chuck 12” 3-Jaw

Turret tool positions 12

Tailstock:
Quill diameter of tailstock 7.87
Quill stroke of tailstock 5.9
Quill taper of tailstock M.T. 7
Tailstock body travel 110”
Hydraulic, programmable tailstock body and quill
36" Swing x 130" Centers
