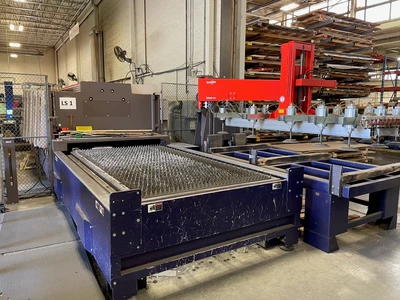

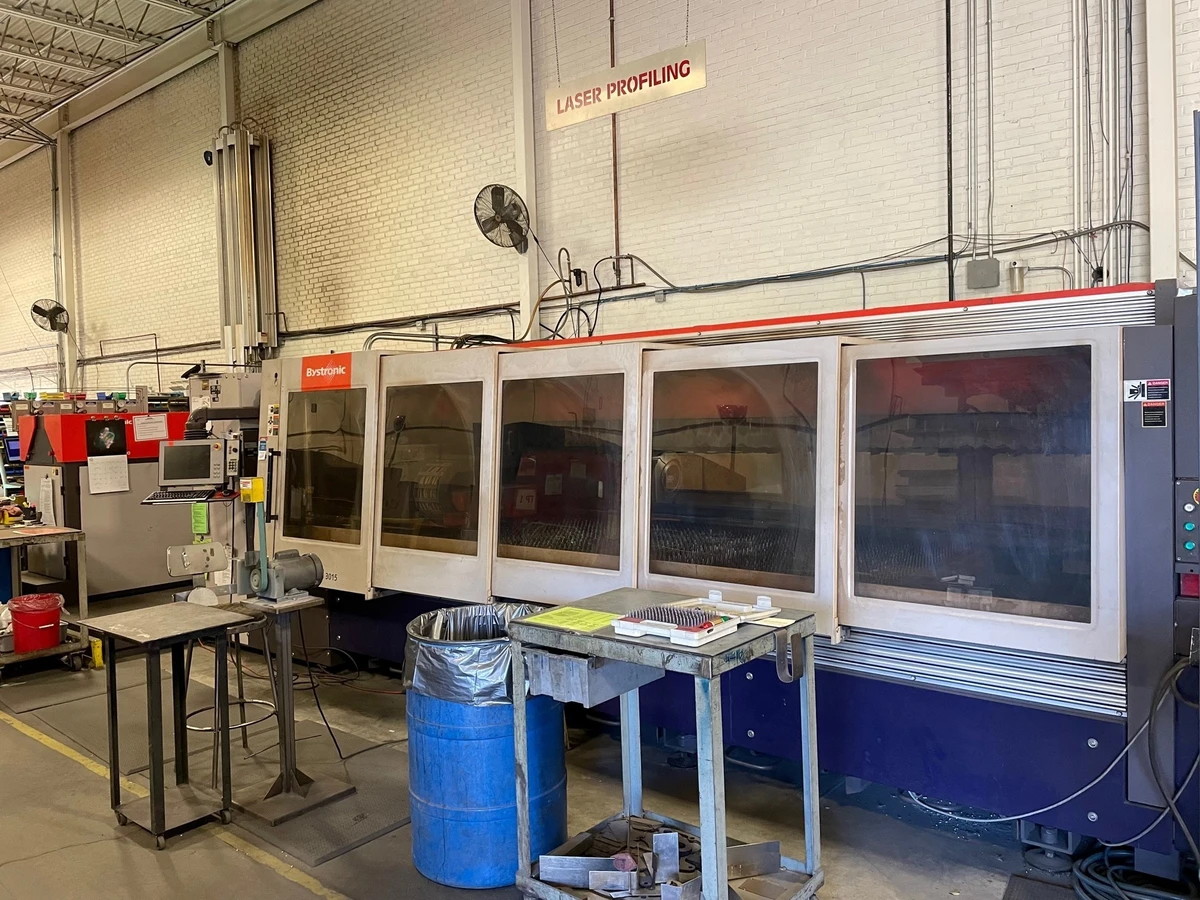

Bystronic Bylaser 4400 Watt 3015 CNC C02 LASER (2006)

Bystronic Bylaser 4400 Watt 3015 CNC C02 LASER (2006)

Specifications:

Nominal Sheet Size: X-120″ Y-60″

Cutting Range: X-120″, Y-60″ Z-6.70″

Maximum Positioning Speed Axis Parallel: X & Y 3,150 in. / min.

Maximum Positioning Speed Simultaneous: 4,450 in. / min.

Maximum Axis Acceleration: 177 in./s2

Positioning Accuracy: Pa* +/- 0.004″

Repeat Ability: * +/- 0.002″

Edge Detection Precision: +/- 0.020″

Maximum Work Piece Weight: 1,962 Lbs.

Machine Weight: 29,800 Lbs.

Laser Sources: Bylaser 4400

Cutting Heads: 5″ and 7.5″

Operation Via Panel: 15″ Touchscreen, Keyboard and Manual Control Unit

Drives: 3.5″ Floppy Disk and 250 MB ZIP Disk

Network Connection: RJ45 Connector 10/100 MBit/s

Output: 4,400W

Wavelength: 10.6 um

Pulse Frequency: 1 – 2,500 Hz

Max. Sheet Thickness Mild Steel: 1″

Max. Sheet Thickness Stainless Steel: 0.75″

Max. Sheet Thickness Aluminum: 0.50″

Maximum Electric Consumption of the Total System: 56 kW
