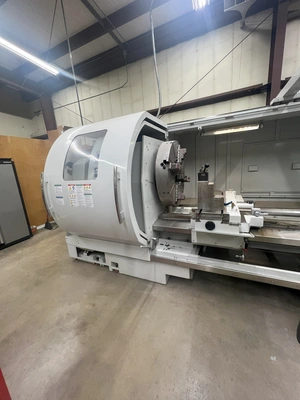

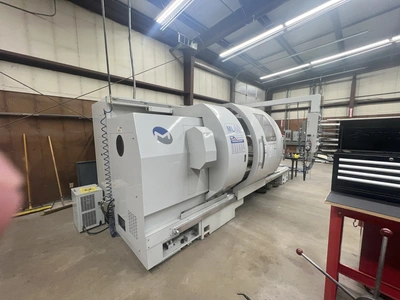

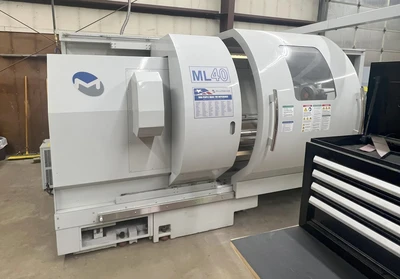

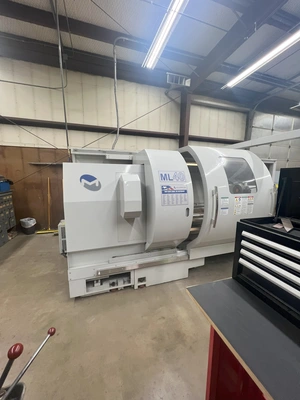

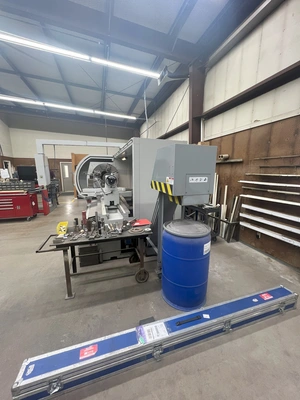

Milltronics ML40/80 Series B Big Bore CNC Lathe (2008)
Have one to sell?
ConditionUsed
1 available

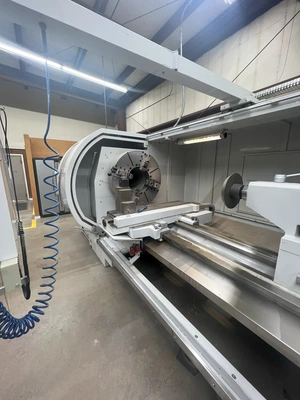

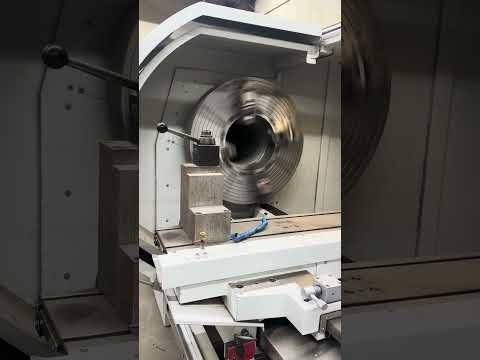

14" Bore, 36” Forged Kalamazoo 4-Jaw Chuck, Chip Conveyor, Heavy Duty Tailstock, Milltronics 7200 CNC
Milltronics ML40/80 Series B Big Bore CNC Lathe (2008)
X/Z Travels
21/87 in
Swing Over Bed
39.7 in
Swing Over Gap
50 in
Gap Distance
14.6 in
Swing Over Cross
26.6 in
Spindle Bore
14 in
Spindle Range
10-900 RPM
AC Spindle Motor
35/25 HP
Spindle Torque
1850 ft-lbs
Tailstock Quill Travel
9 in
Tailstock Quill Diameter
4.92 in
Tailstock Quill Taper
MT6
Automatic Turret
Tool Capacity
8
Tooling Size
1.5 in
Boring Bar Capacity
2 in
Tool Selection
Bi-Directional
MOTION
Rapid Traverse Rate
500 IPM
Max. Cutting Feed Rate
100 IPM
Positioning Accuracy
(+/- 0.00025 in)
Repeatability
0.00039 in
Axis Thrust Force
6700 lbs
GENERAL DETAILS
Machine Weight
24500 lbs
Machine Height
90 in
Footprint
193 x 110.2 in Nominal Operating (W x D)
Power Required
40 KVA / 100 Amps
Voltage Required
208-240 Volts / 3 Phase

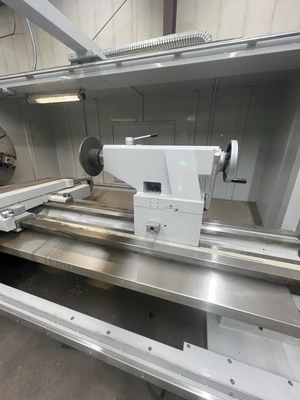

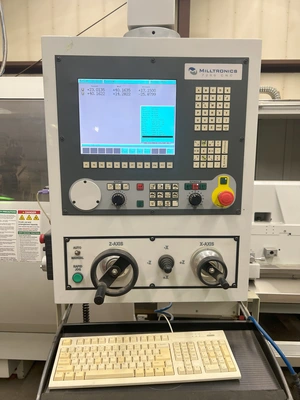

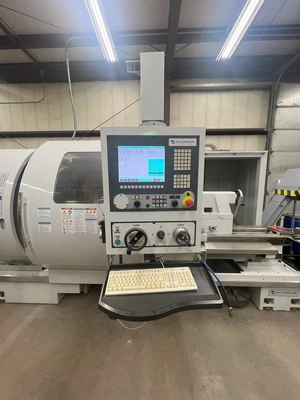

14" Bore, 36” Forged Kalamazoo 4-Jaw Chuck, Chip Conveyor, Heavy Duty Tailstock, Milltronics 7200 CNC, 4 Way Tool Post
