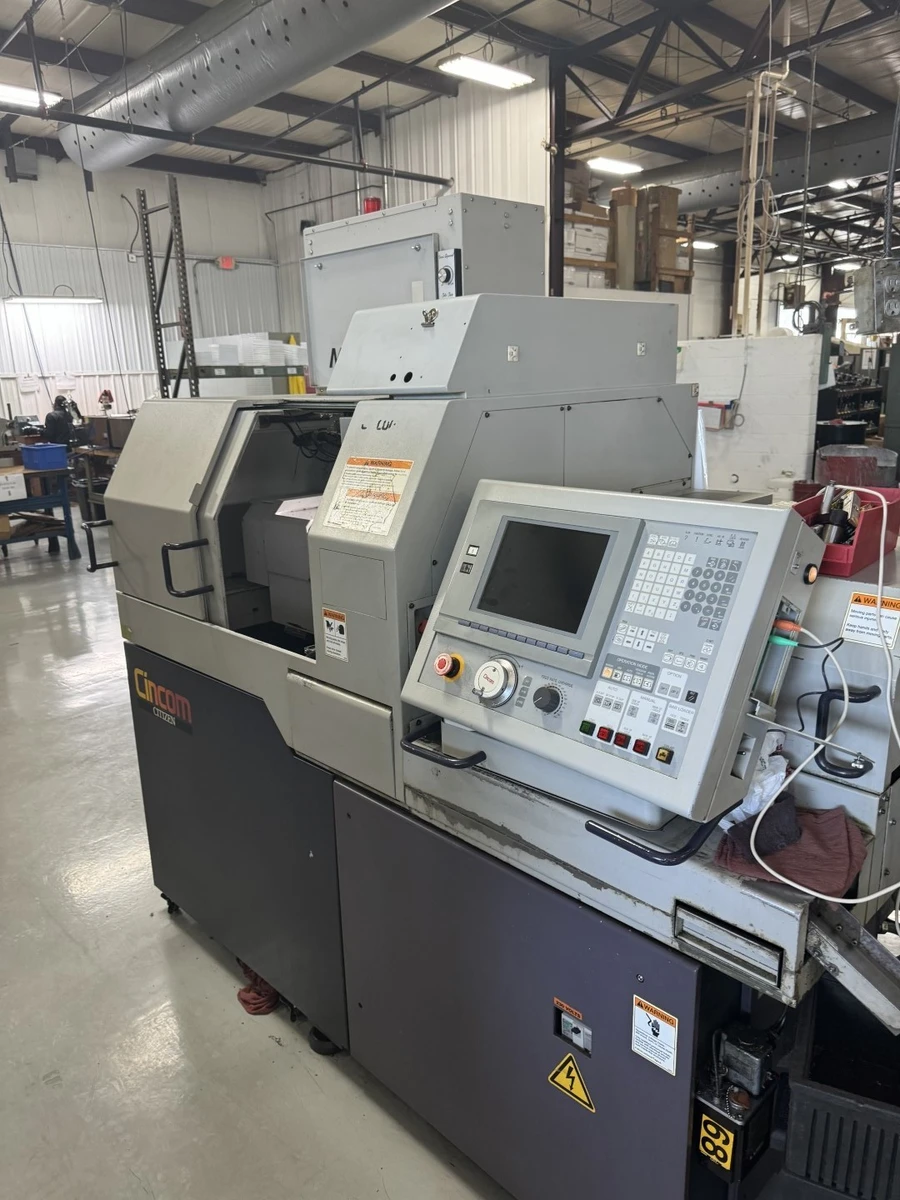

Citizen L20VIII CNC Swiss Type Lathe (2003)

Citizen L20VIII CNC Swiss Type Lathe (2003)

Main Spindle

Max. machining diameter ....................... 3/4" (.79")

Max. machining length per one chuck ........... 7.87"

Max. drilling diameter ........................ up to .394"

Speed ......................................... 200 - 10,000 rpm

Min. spindle input increment .................. 0.01 Full C-axis

Motor ......................................... 2.2/3.7 KW

Tooling ....................................... 1/2" (T01 5/8")

Back-work:

Max. chucking dia. of pick-off spindle ........ .79"

Pick-off spindle speed ........................ 200 - 8,000 rpm

Pick-off spindle motor ........................ .75/1.5 KW

Min. spindle increment ........................ 0.01 Deg. Full C-axis

Rotary tool:

Rotary spindle speed .......................... 200 - 5000 rpm

Rotary tool motor ............................. 1.0 KW

Number of tools mounted ........................ 18-21

Turning / Front ID / Back ID / Live tools ... 5 / 3 / 3 / 5

Power consumption: ............................ 6 KVA

Approx. Machine Dims. .......................... 83.5" x 48" x 81"

Approx. Weight ................................. 5,000 lbs
