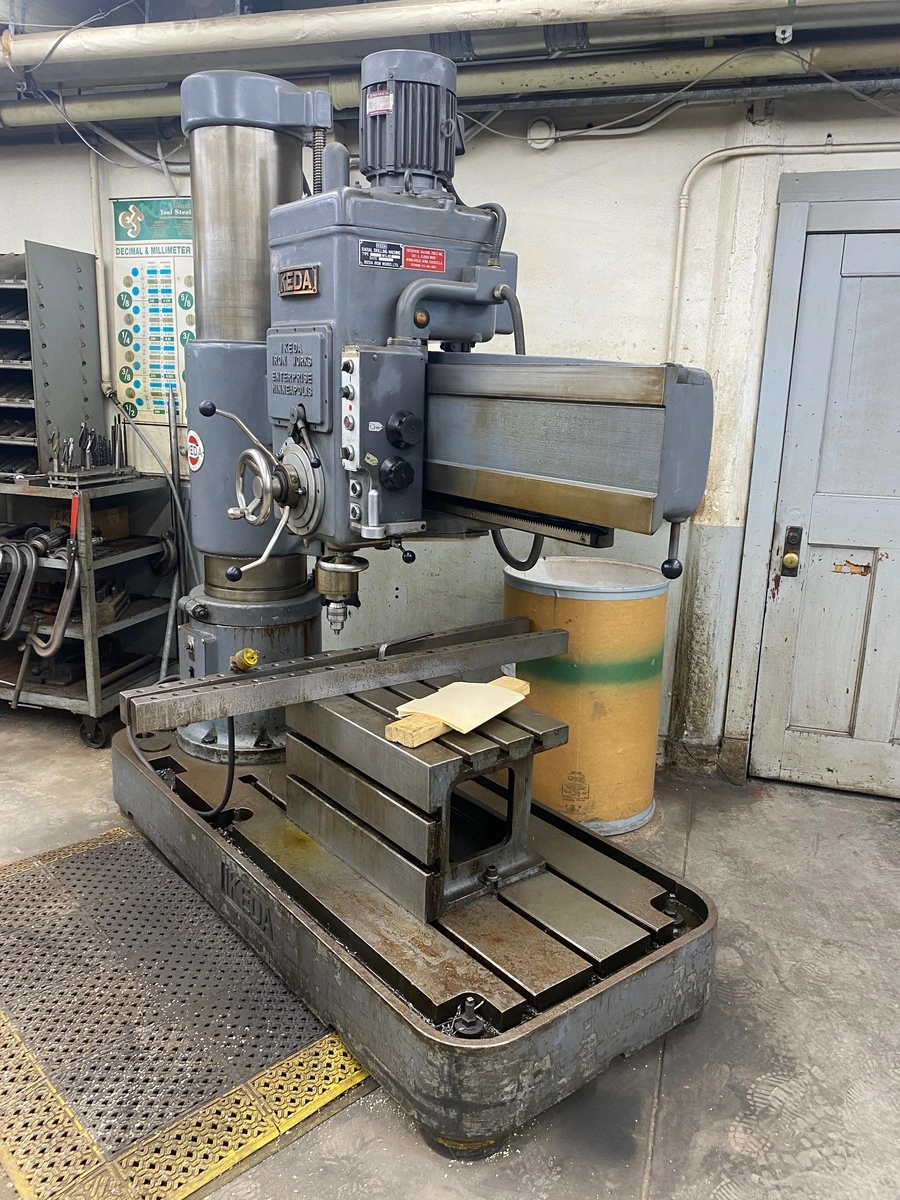

Ikeda RM-1300 4' x 13" Radial Arm Drill (1980)
Have one to sell?
ConditionUsed
1 available
4' x 13", T slotted Box Table
Ikeda RM-1300 4' x 13" Radial Arm Drill (1980)
Column Diameter: 13-5/8"
Max Spindle Center to Column: 53.5"
Spindle Speeds: (12) 30 - 1,440 RPM
Spindle Feed Rates: (4) .004", .008", .013", .024" IPR
Spindle Taper: #5MT
Arm Length: 52"
Base Dimensions: 36" x 57" Work Surface
Spindle Drive: 5 HP
Box Table Dimensions: 27" x 18" x 16- 1/2"
Min Spindle to Column: 8"
Quilll Travel: 12" (Powered)
Max Spndle to Base: 52-3/4"
Min Spindle To Base: 15"
Drill Capacity Steel: 2.25"
Dril capacity Cast Iron: 2.625"
4' x 13", T slotted Box Table
