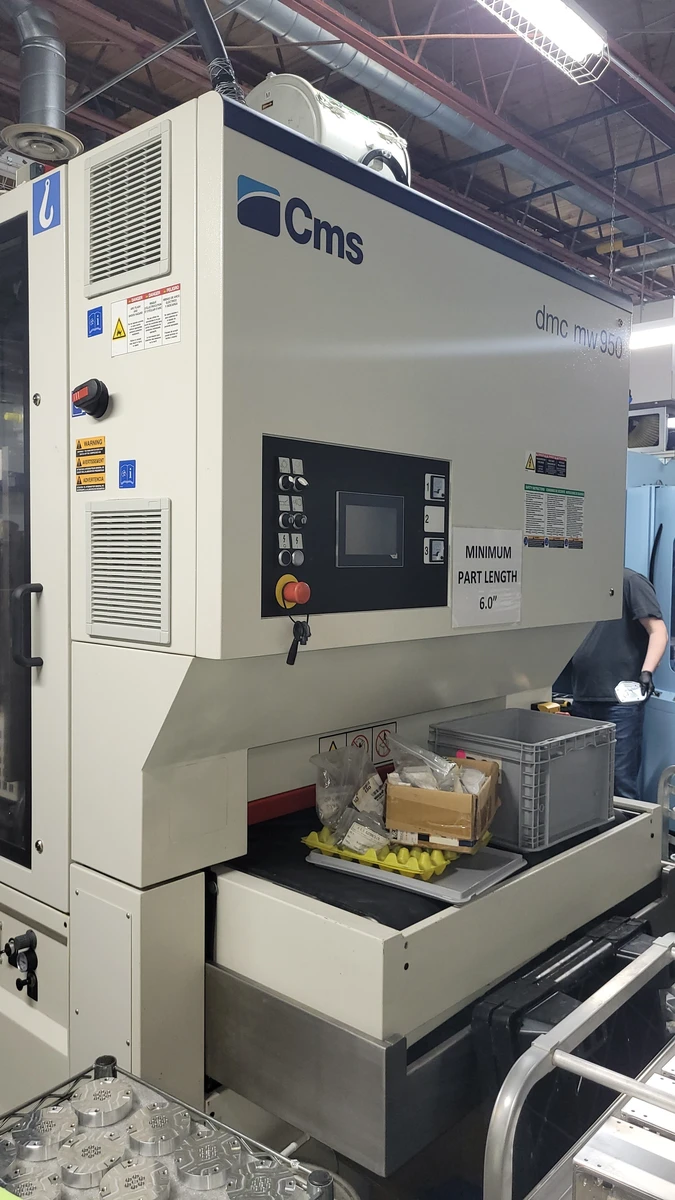

CMS Metal Technologies DMC MW950 37" Wet Belt Grinding Machine (2020)

CMS Metal Technologies DMC MW950 37" Wet Belt Grinding Machine (2020)

Wet deburring-finishing machine
DMC has developed a new compact and solid wet deburring-finishing machine. The DMC m950 wet can be equipped up to 6 working units.
Those available units are Roller drums (R), Row of 6 Discs (D) and Oscillating barrel brush (B) with abrasive cloth. With the modular structure, it is possible to replace the single operating units or order the machine with empty spaces for the future working units. This feature makes the machine very flexible for future growth and production requirements.

MAIN EQUIPMENT

• Hydra V-pad control panel with 10.4” touch-screen with 120 working programs
• Air filtering unit on top to clean air containing oil mists (opt.)
• Motors positioned inside the machine structure
• Stainless steel tank
• Drying station: the outfeeded workpieces go through a cleaning and drying station (opt.)
• Fast locking system of the working units
• On/off positioning for the working units
• Working unit motors are driven by inverters (opt.)
• Infeed over thickness detection
• External tank and particle collection equipped with automated TNT filter (opt)
Technical data
Number of operating units 3-6
Working width 950 mm
Min / max standard working thickness (fixed worktable) 0.5 ÷ 200 mm
Sanding belt dimensions 970 x 2620 mm
Fixed height from the ground 930 mm
Conveyor belt speed 0.5 ÷ 10 mm
