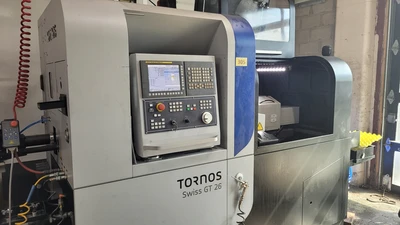

Tornos Swiss GT 26 CNC Swiss Type Lathe (2021)

TECHNICAL SPECIFICATIONS SWISS GT 26/6 SWISS GT 26 B
6 linear axes + 2 C-axis 6 linear axes + 2 C-axis
2 independent tool systems 2 independent tool systems
Main spindle
Max. bar capacity mm 23 (25.4) 23 (25.4)
Standard workpiece length with rotating guide bush mm 220 220
Spindle rotation speed rpm 0-10,000 0-10,000
Spindle power kW 8.2 (10.5) 8.2 (10.5)
Max. torque Nm 26 26

Platten
Max. number of turning tools 10 10
Turning tool section 16 x 16 16 x 16
Number of frontal tools (op/cop) 5 / (5)
Positions for rotating tools (S11) 4 4
Positions for rotating tools (S21 modular positions) 3
Rotating tool speed of rotation rpm 5000 5000
Rotating tool power (S11 / S21) kW 0.75 / 1 0.75
B-axis
Number of rotating tool positions S21 (op /cop) 4 / 4
Number of fix frontal tools (op /cop) 4
HF spindle Option
Thread whirling device Option
Rotating tool speed of rotation rpm 9000
Rotating tool power (S11 / S21) kW 0.75 / 1
Counter spindle
Max. bar capacity mm 25.4 25.4
Insertion length of workpiece into spindle mm 120 120
Max standard output length of workpiece mm 120 120
Spindle rotation speed rpm 0-10,000 0-10,000
Spindle power kW 8.2 (10.5) 8.2 (10.5)
Max. torque Nm 26 26
Number of tool positions next to the counter spindle 2 2
Counter operation
Number of tool positions 8 8
Positions for rotating tools 4 4
Rotating tool speed of rotation rpm 5000 5000
Rotating tool power kW 0.75 0.75
Total number of tools 40 36
Operation /counter-operation tool distribution 27/13 23/13

TECHNICAL SPECIFICATIONS SWISS GT 26/6 SWISS GT 26 B
6 linear axes + 2 C-axis 6 linear axes + 2 C-axis + 1 B-axis
2 independent tool systems 2 independent tool systems

BASIC MACHINE EQUIPMENT
Rotating guide bush with integrated motor X X
Machining without guide bush X X
S21 rear platten rotating tool motor X X
S11 front platten rotating tool motor X X
S51 rotating tool motor in counter-operation X X
C1 + C4 axes X X
Interpolation in polar coordinates Option Option
Pneumatic workpiece ejector + oil cleaning of collet X X
Automatic centralised lubrication cycle X X
Beacon (4 colour) X X
20 bar lubrication pump with manual selection filters X X
Bar feeder interface X X
Fire extinguisher interface X X
TISIS programming software Option Option
NUMERICAL CONTROL
Control type Fanuc 31iB Fanuc 31iB
Encoder / axis motor technique Absolute serial Absolute serial
Motor type (axes and guide bush) Synchronous (AC) Synchronous (AC)
Motor type (spindles) Asynchronous (AC) Asynchronous (AC)
Colour screen and mobile operator console
PROGRAMMING SOFTWARE
ISO language code C, TMI
Cutting Hours: 435
